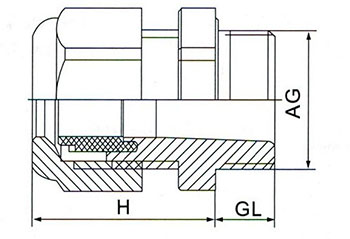

系列	规格	电缆范围	螺纹长度	本体高度	扳手直径	螺纹外径	开孔尺寸	订货号 Order NO.		包装 Packing
Series	Thread		GL	H		AG	Panel Mounting Hole	灰色	黑色	只/包
		mm	mm	mm	mm	mm	mm	Grey	Black	Pcs/Bag
塑料电缆接头NPT系列 plastic cable gland NPT series	NPT1/4	3-6.5	8	22	15/16	13.7	13.7-14	N1408060	N1408061	100
	NPT1/4	2-5	8	22	15/16	13.7	13.7-14	N1408050	N1408051	100
	NPT3/8	4-8	15	26	19	17	17-17.3	N3815080	N3815081	100
	NPT3/8	2-6	15	26	19	17	17-17.3	N3815060	N3815061	100
	NPT1/2	6-12	13	30	24	21.2	21.2-21.5	N1213120	N1213121	100
	NPT1/2	5-9	13	30	24	21.2	21.2-21.5	N1213090	N1213091	100
	NPT1/2	10-14	13	30	27	21.2	21.2-21.5	N1213140	N1213141	100
	NPT1/2	7-12	13	30	27	21.2	21.2-21.5	N1213130	N1213131	100
	NPT3/4	13-18	15	35	33	26.2	26.2-26.5	N3415180	N3415181	100
	NPT3/4	9-16	15	35	33	26.2	26.2-26.5	N3415160	N3415161	100
	NPT1	18-25	16	40	41	33.3	33.3-33.6	N1016250	N1016251	50
	NPT1	13-20	16	40	41	33.3	33.3-33.6	N1016200	N1016201	50
	NPT1 1/4	18-25	18	40	42/46	42	42-42.3	N1518250	N1518251	50
	NPT1 1/4	13-20	18	40	42/46	42	42-42.3	N1518200	N1518201	50
	NPT1 1/2	22-32	15	48	52/53	48	48-48.3	N1315320	N1315321	20
	NPT1 1/2	20-26	15	48	52/53	48	48-48.3	N1315260	N1315261	20
	NPT2	37-44	15	50	64	60.1	60.1-60.4	N2015440	G2015441	20
	NPT2	29-35	15	50	64	60.1	60.1-60.4	N2015350	G2015351	20

Inquiry

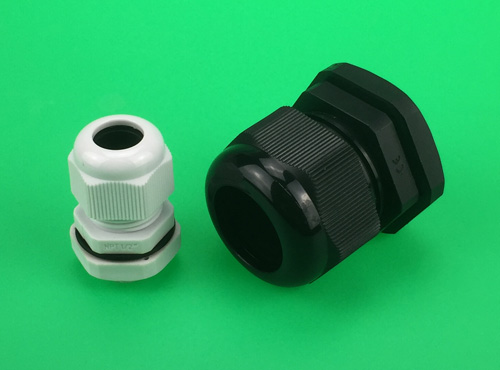

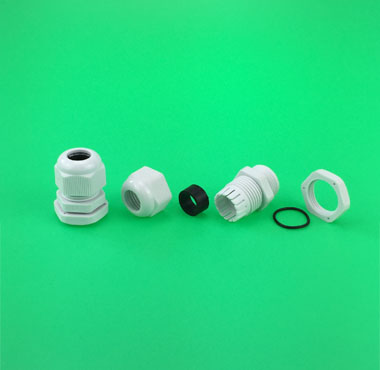

Name:	plastic cable gland NPT series
Material:	Nylon PA6
Seal:	NBR
Protection Grade:	IP68(with sealing）
Environment Temperature:	from -40℃ to 100℃(120℃ for short term)
Product Color:	Grey RAL7035;Black RAL9005,other color please inquire.
