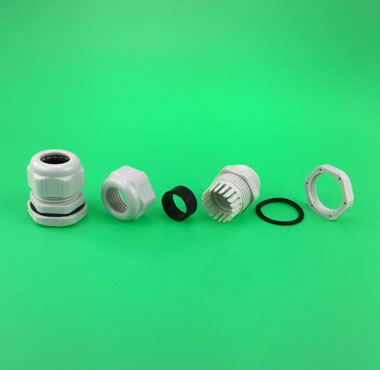

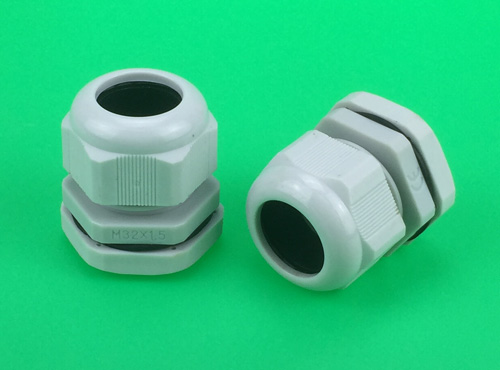

| Name: | plastic cable gland M Economical series |
| Material: | Nylon PA6 |
| Seal: | NBR |
| Protection Grade: | IP68(with sealing） |
| Environment Temperature: | from -40℃ to 100℃(120℃ for short term) |
| Product Color: | Grey RAL7035;Black RAL9005,other color please inquire. |

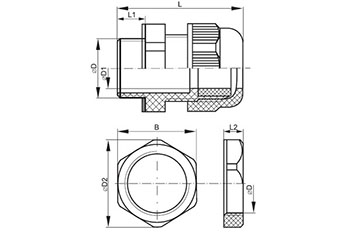

| 系列 | 规格 | 电缆范围 | B | D | D1 | D2 | L | L1 | L2 | 订货号 order NO. | 只/包 | |
| Series | Thread |
 mm |
 mm |
mm | mm | mm | mm | mm | mm | 灰色 Grey | 黑色 Black | Pcs/Bag |
|
塑料电缆接头M经济系列 plastic cable gland M Economical series |
M12×1.5 | 3-6.5 | 15.0 | 12.0 | 7.0 | 17.0 | 28.0 | 7.3 | 4.2 | M1208060-B | M1208061-B | 100 |
| M12×1.5 | 2-5 | 15.0 | 12.0 | 7.0 | 17.0 | 28.0 | 7.3 | 4.2 | M1208050-B | M1208051-B | 100 | |
| M16×1.5 | 4-8 | 18.0 | 16.0 | 8.5 | 20.0 | 30.2 | 8.0 | 4.5 | M1608080-B | M1608081-B | 100 | |
| M16×1.5 | 2-6 | 18.0 | 16.0 | 8.5 | 20.0 | 30.2 | 8.0 | 4.5 | M1608060-B | M1608061-B | 100 | |
| M18×1.5 | 5-10 | 21.0 | 18.0 | 10.5 | 24.0 | 33.0 | 8.0 | 4.5 | M1808100-B | M1808101-B | 100 | |
| M18×1.5 | 3-7 | 21.0 | 18.0 | 10.5 | 24.0 | 33.0 | 8.0 | 4.5 | M1808070-B | M1808071-B | 100 | |
| M20×1.5 | 6-12 | 23.0 | 20.0 | 12.5 | 25.5 | 34.5 | 9.0 | 4.7 | M2009120-B | M2009121-B | 100 | |
| M20×1.5 | 5-9 | 23.0 | 20.0 | 12.5 | 25.5 | 34.5 | 9.0 | 4.7 | M2009090-B | M2009091-B | 100 | |
| M22×1.5 | 10-14 | 26.0 | 22.0 | 14.5 | 28.5 | 37.0 | 10.0 | 5.0 | M2210140-B | M2210141-B | 100 | |
| M22×1.5 | 7-12 | 26.0 | 22.0 | 14.5 | 28.5 | 37.0 | 10.0 | 5.0 | M2210120-B | M2210121-B | 100 | |
| M24×1.5 | 12-15 | 27.0 | 24.0 | 19.0 | 30.4 | 41.8 | 11.0 | 5.2 | M2410150-B | M2410151-B | 100 | |
| M24×1.5 | 10-12 | 27.0 | 24.0 | 19.0 | 30.4 | 41.8 | 11.0 | 5.2 | M2410120-B | M2410121-B | 100 | |
| M25×1.5 | 11-17 | 29.0 | 25.0 | 19.8 | 31.4 | 42.0 | 10.0 | 6.0 | M2510180-B | M2510181-B | 100 | |
| M25×1.5 | 8-13 | 29.0 | 25.0 | 19.8 | 31.4 | 42.0 | 10.0 | 6.0 | M2510160-B | M2510161-B | 100 | |
| M32×1.5 | 12-21 | 37.0 | 32.0 | 24.7 | 40.7 | 44.0 | 11.0 | 6.0 | M3211210-B | M3211211-B | 50 | |
| M32×1.5 | 7-15 | 37.0 | 32.0 | 24.7 | 40.7 | 44.0 | 11.0 | 6.0 | M3211150-B | M3211151-B | 50 | |
| M40×1.5 | 19-28 | 45.0 | 40.0 | 33.7 | 50.0 | 61.5 | 18.0 | 7.6 | M4014320-B | M5014381-B | 20 | |
| M40×1.5 | 15-23 | 45.0 | 40.0 | 33.7 | 50.0 | 61.5 | 18.0 | 7.6 | M4014260-B | M5014311-B | 20 | |
| M50×1.5 | 27-35 | 55.0 | 50.0 | 44.0 | 61.0 | 65.0 | 18.0 | 7.7 | M5014380-B | M5014381-B | 20 | |
| M50×1.5 | 22-29 | 55.0 | 50.0 | 44.0 | 61.0 | 65.0 | 18.0 | 7.7 | M5014310-B | M5014311-B | 20 | |
| M63×1.5 | 37-44 | 66.5 | 63.0 | 56.3 | 73.5 | 75.0 | 19.0 | 9.7 | M6314440-B | M6314441-B | 20 | |
| M63×1.5 | 28-39 | 66.5 | 63.0 | 56.3 | 73.5 | 75.0 | 19.0 | 9.7 | M6314350-B | M6314351-B | 20 | |
