系列	规格	电缆范围	螺纹长度	本体高度	扳手直径	螺纹外径	开孔尺寸	订货号 Order NO.		包装 Packing

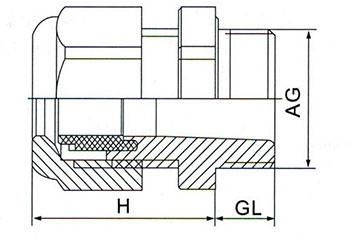

Series	Thread		GL	H		AG	Panel Mounting Hole	灰色	黑色	只/包
		mm	mm	mm	mm	mm	mm	Grey	Black	Pcs/Bag
塑料电缆接头M加长系列 plastic cable gland M Lengthen series	M12x1.5	3-6.5	15	22	15/16	12	12-12.3	M1215060	M1215061	100
	M12x1.5	2-5	15	22	15/16	12	12-12.3	M1215050	M1215051	100
	M16x1.5	4-8	15	26	19	16	16-16.3	M1615080	M1615081	100
	M16x1.5	2-6	15	26	19	16	16-16.3	M1615060	M1615061	100
	M16x1.5	5-10	15	27	22	16	16-16.3	M1615100	M1615101	100
	M16x1.5	3-7	15	27	22	16	16-16.3	M1615070	M1615071	100
	M18x1.5	5-10	15	27	22	18	18-18.3	M1815100	M1815101	100
	M18x1.5	3-7	15	27	22	18	18-18.3	M1815070	M1815071	100
	M20x1.5	6-12	15	28	24	20	20-20.3	M2015120	M2015121	100
	M20x1.5	5-9	15	28	24	20	20-20.3	M2015090	M2015091	100
	M20x1.5	10-14	15	30	27	20	20-20.3	M2015140	M2015141	100
	M20x1.5	7-12	15	30	27	20	20-20.3	M2015130	M2015131	100
	M22x1.5	10-14	15	30	27	22	22-22.3	M2215140	M2215141	100
	M22x1.5	7-12	15	30	27	22	22-22.3	M2215120	M2215121	100
	M25x1.5	13-18	15	35	33	25	25-25.3	M2515180	M2515181	100
	M25x1.5	9-16	15	35	33	25	25-25.3	M2515160	M2515161	100
	M32x1.5	18-25	15	40	41/42	32	32-32.3	M3215250	M3215251	50
	M32x1.5	13-20	15	40	41/42	32	32-32.3	M3215200	M3215201	50
	M40x1.5	19-28	18	43	45/46	40	40-40.3	M4018280	M4018281	20
	M40x1.5	15-23	18	43	45/46	40	40-40.3	M4018230	M4018231	20
	M40x1.5	22-32	18	48	52/53	40	40-40.3	M4018320	M4018321	20
	M40x1.5	20-26	18	48	52/53	40	40-40.3	M4018260	M4018261	20
	M50x1.5	27-35	18	48	55/56	50	50-50.3	M5018350	M5018351	20
	M50x1.5	22-29	18	48	55/56	50	50-50.3	M5018290	M5018291	20
	M50x1.5	32-38	18	49	60/61	50	50-50.3	M5018380	M5018381	20
	M50x1.5	25-31	18	49	60/61	50	50-50.3	M5018310	M5018311	20
	M63x1.5	37-44	18	50	64	63	63-63.3	M6318440	M6318441	20
	M63x1.5	29-35	18	50	64	63	63-63.3	M6318350	M6318351	20
	M63x1.5	34-45	19	57	67/68	63	63-63.3	M6319450	M6319451	20
	M63x1.5	28-39	19	57	67/68	63	63-63.3	M6319390	M6319391	20

Inquiry

* Product Name:
* Subject:
* Message:
* Contact:
* Email:
CompanyName:
* Phone:
Fax:
Address:

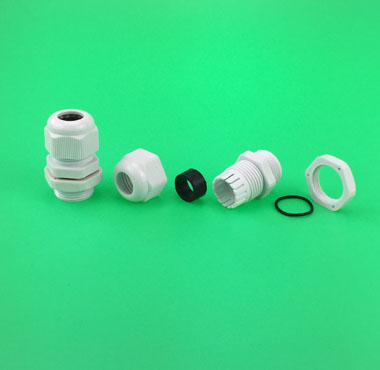

Name:	plastic cable gland M Lengthen series
Material:	Nylon PA6
Seal:	NBR
Protection Grade:	IP68(with sealing）
Environment Temperature:	from -40℃ to 100℃(120℃ for short term)

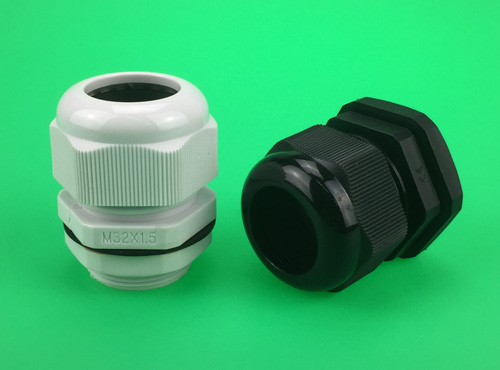

Product Color:	Grey RAL7035;Black RAL9005,other color please inquire.
