Yueqing City OUORO Electric Co.,Ltd，cable marker，tie mount，snap bushing

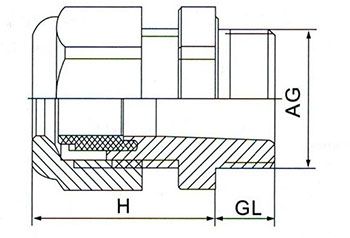

系列	规格	电缆范围	螺纹长度	本体高度	扳手直径	螺纹外径	开孔尺寸	订货号 Order NO.		包装 Packing
Series	Thread		GL	H		AG	Panel Mounting Hole	灰色	黑色	只/包
		mm	mm	mm	mm	mm	mm	Grey	Black	Pcs/Bag
塑料电缆接头M系列 plastic cable gland M series	M10x1	3-6.5	8	22	15	10	10-10.3	M1008060	M1008061	100
	M10x1	2-5	8	22	15	10	10-10.3	M1008050	M1008051	100
	M12x1.5	3-6.5	8	22	16	12	12-12.3	M1208060	M1208061	100
	M12x1.5	2-5	8	22	16	12	12-12.3	M1208050	M1208051	100
	M14x1.5	4-8	8	26	19	14	14-14.3	M1408080	M1408081	100
	M14x1.5	2-6	8	26	19	14	14-14.3	M1408060	M1408061	100
	M16x1.5	4-8	8	26	19	16	16-16.3	M1608080	M1608081	100
	M16x1.5	2-6	8	26	19	16	16-16.3	M1608060	M1608061	100
	M16x1.5	5-10	8	27	22	16	16-16.3	M1608100	M1608101	100
	M16x1.5	3-7	8	27	22	16	16-16.3	M1608070	M1608071	100
	M18x1.5	5-10	8	27	22	18	18-18.3	M1808100	M1808101	100
	M18x1.5	3-7	8	27	22	18	18-18.3	M1808070	M1808071	100
	M20x1.5	6-12	9	28	24	20	20-20.3	M2009120	M2009121	100
	M20x1.5	5-9	9	28	24	20	20-20.3	M2009090	M2009091	100
	M20x1.5	10-14	10	30	27	20	20-20.3	M2010140	M2010141	100
	M20x1.5	7-12	10	30	27	20	20-20.3	M2010130	M2010131	100
	M22x1.5	10-14	10	30	27	22	22-22.3	M2210140	M2210141	100
	M22x1.5	7-12	10	30	27	22	22-22.3	M2210120	M2210121	100
	M24x1.5	12-15	10	30	27	24	24-24.3	M2410150	M2410151	100
	M24x1.5	10-12	10	30	27	24	24-24.3	M2410120	M2410121	100
	M25x1.5	13-18	10	35	33	25	25-25.3	M2510180	M2510181	100
	M25x1.5	9-16	10	35	33	25	25-25.3	M2510160	M2510161	100
	M27x1.5	13-18	10	35	33	27	27-27.3	M2710180	M2710181	100
	M27x1.5	9-16	10	35	33	27	27-27.3	M2710160	M2710161	100
	M30x1.5	16-21	11	34	35/36	30	30-30.3	M3011210	M3011211	50
	M30x1.5	7-15	11	34	35/36	30	30-30.3	M3011150	M3011151	50
	M32x1.5	16-21	11	34	36/37	32	32-32.3	M3211210	M3211211	50
	M32x1.5	7-15	11	34	36/37	32	32-32.3	M3211150	M3211151	50
	M32x1.5	18-25	12	40	41/42	32	32-32.3	M3212250	M3212251	50
	M32x1.5	13-20	12	40	41/42	32	32-32.3	M3212200	M3212201	50
	M36x1.5	18-25	12	40	41/42	36	36-36.3	M3612250	M3612251	20
	M36x1.5	13-20	12	40	41/42	36	36-36.3	M3612200	M3612201	20
	M40x1.5	22-32	14	48	52/53	40	40-40.3	M4014320	M4014321	20
	M40x1.5	20-26	14	48	52/53	40	40-40.3	M4014260	M4014261	20
	M50x1.5	32-38	14	49	60/61	50	50-50.3	M5014380	M5014381	20
	M50x1.5	25-31	14	49	60/61	50	50-50.3	M5014310	M5014311	20
	M63x1.5	37-44	14	50	67	63	63-63.3	M6314440	M6314441	20
	M63x1.5	29-35	14	50	67	63	63-63.3	M6314350	M6314351	20
	M75x2	53-60	25	63	82	75	75-75.3	M7525600	M7525601	4
	M75x2	48-55	25	63	82	75	75-75.3	M7525550	M7525551	4

Inquiry

* Product Name:
* Subject:
* Message:
* Contact:
* Email:
CompanyName:
* Phone:
Fax:
Address:

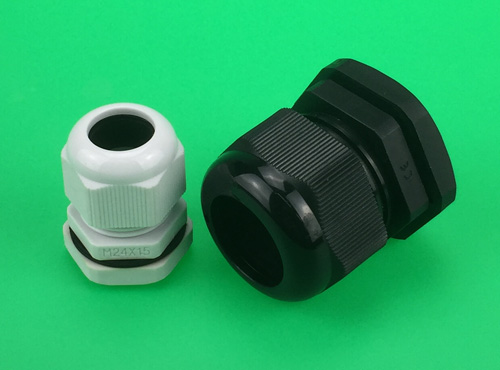

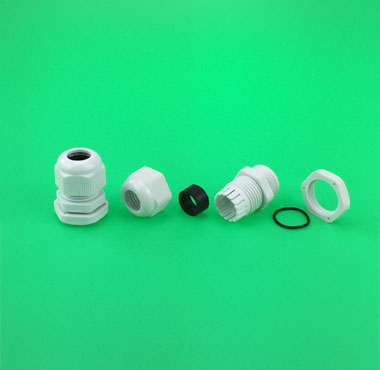

Name:	plastic cable gland M series
Material:	Nylon PA6
Seal:	NBR
Protection Grade:	IP68(with sealing）
Environment Temperature:	from -40℃ to 100℃(120℃ for short term)
Product Color:	Grey RAL7035;Black RAL9005,other color please inquire.
