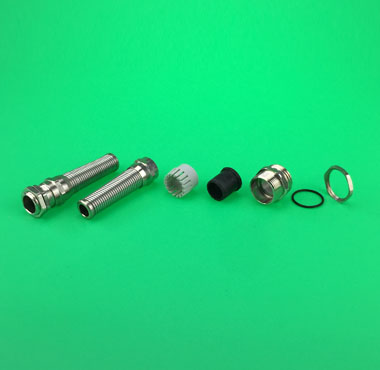

| Name: | metal prevent bend connector G series |
| Material: | Nickel plated brass |
| Prevent bend spring: | stainless steel 1.4310/ASTM301/SUS301 |
| Clamping Jaw: | Nylon,Flame Rating is V-2,According to UL94 |
| Seal: | NBR |
| Thread Type: | G according to ISO 228-1/JIS B 0202 |
| Test Standard: | EN50262/EN62444 |
| Protection Grade: | IP68(with sealing ) |
| Environment Temperature: | -40℃ to +100℃ |
| Note: | other seal material please inquire. |

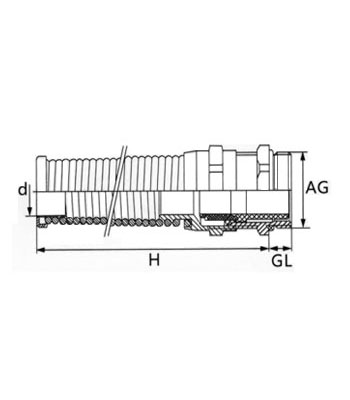

| 系列 | 规格 | 电缆范围 | 螺纹长度 | 本体高度 | 扳手直径 | 螺纹外径 | 开孔尺寸 | 订货号 | 包装 Packing |
| Series | Thread |
|
GL | H |
|
AG | Panel Mounting Hole | Order NO. | 只/包 |
| mm | mm | mm | mm | mm | mm | Pcs/Bag | |||
|
金属防折弯接头G系列

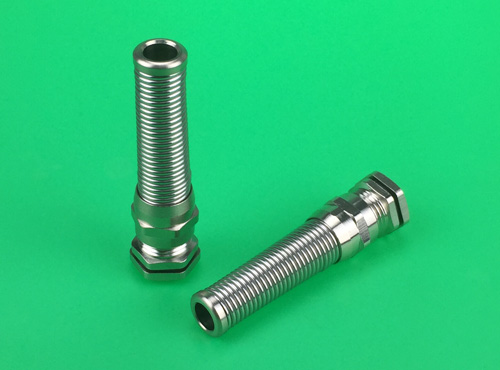

Metal Prevent Bend Connector G Series
|
G1/4 | 3-6.5 | 7 | 53 | 14/15 | 13.1 | 13.1-13.4 | T.G140706F | 50 |
| G1/4 | 2-5 | 7 | 53 | 14/15 | 13.1 | 13.1-13.4 | T.G140705F | 50 | |
| G1/4 | 4-8 | 7 | 66 | 17 | 13.1 | 13.1-13.4 | T.G140708F | 50 | |
| G1/4 | 2-6 | 7 | 66 | 17 | 13.1 | 13.1-13.4 | T.G140707F | 50 | |
| G3/8 | 4-8 | 8 | 66 | 17/18 | 16.6 | 16.6-16.9 | T.G380808F | 20 | |
| G3/8 | 2-6 | 8 | 66 | 17/18 | 16.6 | 16.6-16.9 | T.G380806F | 20 | |
| G3/8 | 5-10 | 8 | 77 | 20 | 16.6 | 16.6-16.9 | T.G380810F | 20 | |
| G3/8 | 3-7 | 8 | 77 | 20 | 16.6 | 16.6-16.9 | T.G380807F | 20 | |
| G1/2 | 6-12 | 8 | 88 | 22 | 20.9 | 20.9-21.2 | T.G120812F | 20 | |
| G1/2 | 5-9 | 8 | 88 | 22 | 20.9 | 20.9-21.2 | T.G120809F | 20 | |
| G1/2 | 10-14 | 8 | 98 | 24 | 20.9 | 20.9-21.2 | T.G120814F | 20 | |
| G1/2 | 7-12 | 8 | 98 | 24 | 20.9 | 20.9-21.2 | T.G120813F | 20 | |
| G3/4 | 13-18 | 8 | 111 | 30 | 26.4 | 26.4-26.7 | T.G340818F | 10 | |
| G3/4 | 9-16 | 8 | 111 | 30 | 26.4 | 26.4-26.7 | T.G340816F | 10 |
