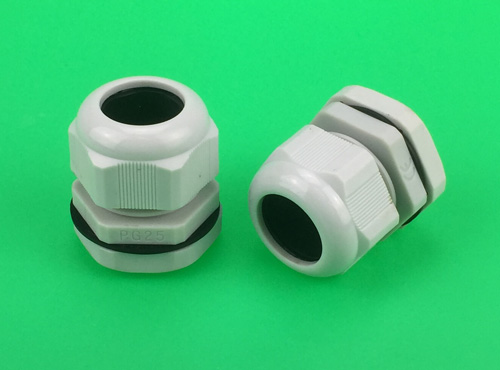

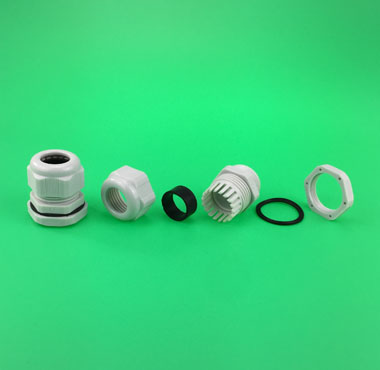

| Name: | plastic cable gland PG Economical series |
| Material: | Nylon PA6 |
| Seal: | NBR |
| Protection Grade: | IP68(with sealing） |
| Environment Temperature: | from -40℃ to 100℃(120℃ for short term) |
| Product Color: | Grey RAL7035;Black RAL9005,other color please inquire. |

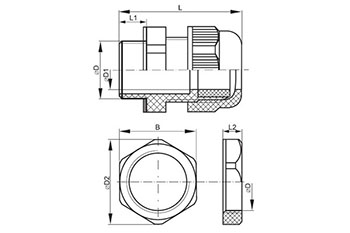

| 系列 | 规格 | 电缆范围 | B | D | D1 | D2 | L | L1 | L2 | 订货号 order NO. | 只/包 | |
| Series | Thread |
 mm |
 mm |
mm | mm | mm | mm | mm | mm | 灰色 Grey | 黑色 Black | Pcs/Bag |
|
塑料电缆接头PG经济系列 plastic cable gland PG Economical series |
PG7 | 3-6.5 | 15.0 | 12.5 | 7.0 | 17.0 | 28.0 | 7.3 | 4.2 | P0708060-B | P0708061-B | 100 |
| PG7 | 2-5 | 15.0 | 12.5 | 7.0 | 17.0 | 28.0 | 7.3 | 4.2 | P0708050-B | P0708051-B | 100 | |
| PG9 | 4-8 | 18.0 | 15.2 | 8.5 | 20.0 | 30.2 | 8.0 | 4.5 | P0908080-B | P0908081-B | 100 | |
| PG9 | 2-6 | 18.0 | 15.2 | 8.5 | 20.0 | 30.2 | 8.0 | 4.5 | P0908060-B | P0908061-B | 100 | |
| PG11 | 5-10 | 21.0 | 18.6 | 10.5 | 24.0 | 33.0 | 8.0 | 4.5 | P1108100-B | P1108101-B | 100 | |
| PG11 | 3-7 | 21.0 | 18.6 | 10.5 | 24.0 | 33.0 | 8.0 | 4.5 | P1108070-B | P1108071-B | 100 | |
| PG13.5 | 6-12 | 23.0 | 20.4 | 12.5 | 25.5 | 34.5 | 9.0 | 4.7 | P1309120-B | P1309121-B | 100 | |
| PG13.5 | 5-9 | 23.0 | 20.4 | 12.5 | 25.5 | 34.5 | 9.0 | 4.7 | P1309090-B | P1309091-B | 100 | |
| PG16 | 10-14 | 26.0 | 22.5 | 14.5 | 28.5 | 37.0 | 10.0 | 5.0 | P1610140-B | P1610141-B | 100 | |
| PG16 | 7-12 | 26.0 | 22.5 | 14.5 | 28.5 | 37.0 | 10.0 | 5.0 | P1610120-B | P1610121-B | 100 | |
| PG19 | 12-15 | 27.0 | 24.0 | 19.0 | 30.4 | 41.8 | 11.0 | 5.2 | P1910150-B | P1910151-B | 100 | |
| PG19 | 7-12 | 27.0 | 24.0 | 19.0 | 30.4 | 41.8 | 11.0 | 5.2 | P1910120-B | P1910121-B | 100 | |
| PG21 | 13-18 | 31.5 | 28.3 | 19.0 | 35.0 | 39.2 | 9.7 | 5.6 | P2110180-B | P2110181-B | 100 | |
| PG21 | 9-16 | 31.5 | 28.3 | 19.0 | 35.0 | 39.2 | 9.7 | 5.6 | P2110160-B | P2110161-B | 100 | |
| PG25 | 16-21 | 35.5 | 30.0 | 24.7 | 39.5 | 44.0 | 11.0 | 6.0 | P2511210-B | P2511211-B | 50 | |
| PG25 | 13-18 | 35.5 | 30.0 | 24.7 | 39.5 | 44.0 | 11.0 | 6.0 | P2511180-B | P2511181-B | 50 | |
| PG29 | 18-25 | 41.0 | 37.0 | 25.5 | 45.0 | 47.5 | 10.7 | 6.0 | P2912250-B | P2912251-B | 50 | |
| PG29 | 13-20 | 41.0 | 37.0 | 25.5 | 45.0 | 47.5 | 10.7 | 6.0 | P2912200-B | P2912201-B | 50 | |
| PG36 | 22-32 | 51.5 | 47.0 | 33.5 | 51.7 | 58.5 | 14.0 | 7.0 | P3614320-B | P3614321-B | 20 | |
| PG36 | 20-26 | 51.5 | 47.0 | 33.5 | 51.7 | 58.5 | 14.0 | 7.0 | P3614260-B | P3614261-B | 20 | |
| PG42 | 32-38 | 58.0 | 54.0 | 41.0 | 64.0 | 59.5 | 14.0 | 7.0 | P4214380-B | P4214381-B | 20 | |
| PG42 | 25-31 | 58.0 | 54.0 | 41.0 | 64.0 | 59.5 | 14.0 | 7.0 | P4214310-B | P4214311-B | 20 | |
| PG48 | 37-44 | 63.5 | 59.3 | 45.5 | 70.3 | 61.0 | 14.0 | 7.0 | P4814440-B | P4814441-B | 20 | |
| PG48 | 29-35 | 63.5 | 59.3 | 45.5 | 70.3 | 61.0 | 14.0 | 7.0 | P4814350-B | P4814351-B | 20 | |
