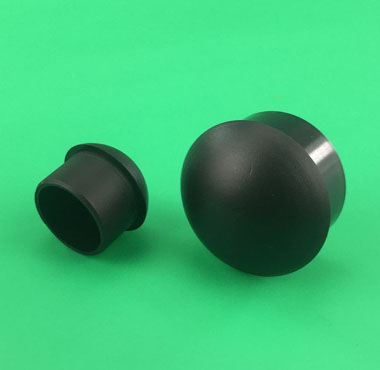

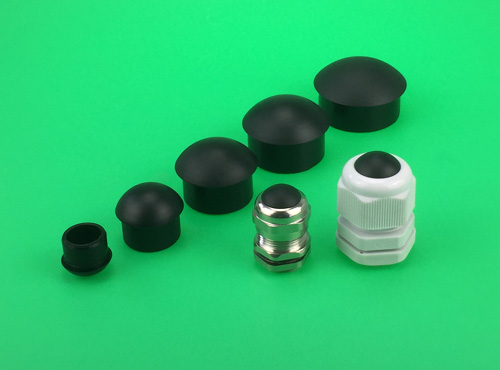

| Name: | plastic half ball end plug series |
| Material: | Nylon PA6 |
| Environment Temperature: | from -40℃ to 100℃(120℃ for short term) |
| Product Color: | Grey RAL7035;Black RAL9005,other color please inquire |
| 系列 | 规格 |
适用于下列尺寸 suit for following size |
订货号 Order NO. | 包装 Packing | ||||
| Series | Thread |
|

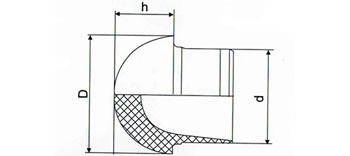

D | d | H | 灰色 | 黑色 | 只/包 |
| mm | mm | mm | mm | Grey | Black | Pcs/Bag | ||
|
塑料半球形堵头系列 plastic half ball end plug series |
Φ6 | 3-6.5 | 9.5 | 6.3 | 2.5 | 06M00 | 06M01 | 100 |
| Φ8 | 4-8 | 11 | 7.8 | 3 | 08M00 | 08M01 | 100 | |
| Φ10 | 5-10 | 13.5 | 9.8 | 3.5 | 10M00 | 10M01 | 100 | |
| Φ12 | 6-12 | 16 | 11.8 | 4.5 | 12M00 | 12M01 | 100 | |
| Φ14 | 10-14 | 18.5 | 13.8 | 5 | 14M00 | 14M01 | 100 | |
| Φ18 | 13-18 | 22.5 | 17.8 | 6 | 18M00 | 18M01 | 100 | |
| Φ25 | 18-25 | 29 | 25 | 7 | 25M00 | 25M01 | 50 | |
| Φ32 | 22-32 | 38 | 32 | 11 | 32M00 | 32M01 | 20 | |
| Φ38 | 32-38 | 43 | 38 | 12 | 38M00 | 38M01 | 20 | |
| Φ44 | 37-44 | 49 | 44 | 12 | 44M00 | 44M01 | 20 | |
