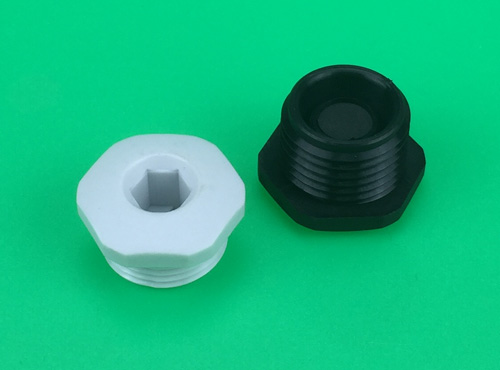

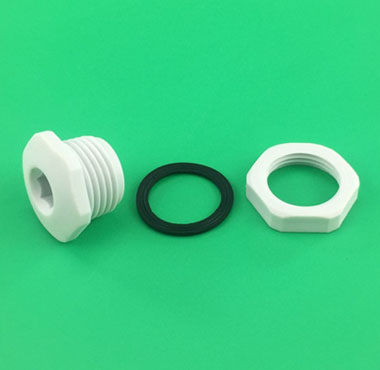

Name: plastic hexagon screw plug NPT series
Material: Nylon PA6
Seal: NBR
Protection Grade: IP68(with sealing）
Environment Temperature: from -40℃ to 100℃(120℃ for short term)
Product Color: Grey RAL7035;Black RAL9005,other color please inquire

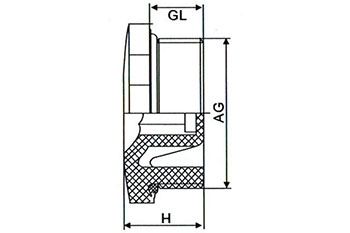

系列 规格 螺纹长度 本体高度 扳手直径 螺纹外径 内扳手直径 开孔尺寸 订货号 Order NO. 包装 Packing
Series Thread GL H AG Panel Mounting Hole 灰色 黑色 只/包
　 　 mm mm mm mm mm mm Grey Black pcs/bag
塑料六角形闷盖NPT系列
plastic hexagon screw plug NPT series 		NPT3/8 13 17 24 17 8 17-17.3 N3860PA N3861PA 100
NPT1/2 13 17 24 21.2 8 21.2-21.5 N1260PA N1261PA 100
NPT3/4 15 20 28 26.2 8 26.2-26.5 N3460PA N3461PA 100
NPT1 15 21 36 33.3 8 33.3-33.6 N1060PA N1061PA 50
NPT1 1/4 15 19 46 42 8 42-42.3 N1560PA N1561PA 50
NPT1 1/2 15 21 55 48 8 48-48.3 N1360PA N1361PA 20
