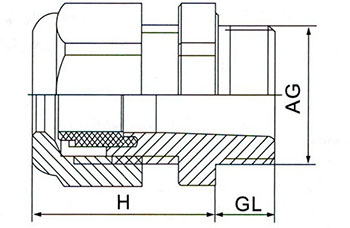

系列	规格	电缆范围	螺纹长度	本体高度	扳手直径	螺纹外径	开孔尺寸	订货号 Order NO.		包装 Packing
Series	Thread		GL	H		AG	Panel Mounting Hole	灰色	黑色	只/包
		mm	mm	mm	mm	mm	mm	Grey	Black	Pcs/Bag
塑料电缆接头PG加长系列 plastic cable gland PG Lengthen series	PG7	3-6.5	15	22	15/16	12.5	12.5-12.8	P0715060	P0715061	100
	PG7	2-5	15	22	15/16	12.5	12.5-12.8	P0715050	P0715051	100
	PG9	4-8	15	26	19	15.2	15.2-15.5	P0915080	P0915081	100
	PG9	2-6	15	26	19	15.2	15.2-15.5	P0915060	P0915061	100
	PG11	5-10	15	27	22	18.6	18.6-18.9	P1115100	P1115101	100
	PG11	3-7	15	27	22	18.6	18.6-18.9	P1115070	P1115071	100
	PG13.5	6-12	15	28	24	20.4	20.4-20.7	P1315120	P1315121	100
	PG13.5	5-9	15	28	24	20.4	20.4-20.7	P1315090	P1315091	100
	PG16	10-14	15	30	27	22.5	22.5-22.8	P1615140	P1615141	100
	PG16	7-12	15	30	27	22.5	22.5-22.8	P1615120	P1615121	100
	PG21	13-18	15	35	33	28.3	28.3-28.6	P2115180	P2115181	100
	PG21	9-16	15	35	33	28.3	28.3-28.6	P2115160	P2115161	100
	PG29	18-25	18	40	41/42	37	37-37.3	P2918250	P2918251	50
	PG29	13-20	18	40	41/42	37	37-37.3	P2918200	P2918201	50
	PG36	22-32	18	48	52/53	47	47-47.3	P3618320	P3618321	20
	PG36	20-26	18	48	52/53	47	47-47.3	P3618260	P3618261	20
	PG42	32-38	18	49	60/61	54	54-54.3	P4218380	P4218381	20
	PG42	25-31	18	49	60/61	54	54-54.3	P4218310	P4218311	20
	PG48	37-44	18	50	64	59.3	59.3-59.6	P4818440	P4818441	20
	PG48	29-35	18	50	64	59.3	59.3-59.6	P4818350	P4818351	20

Inquiry

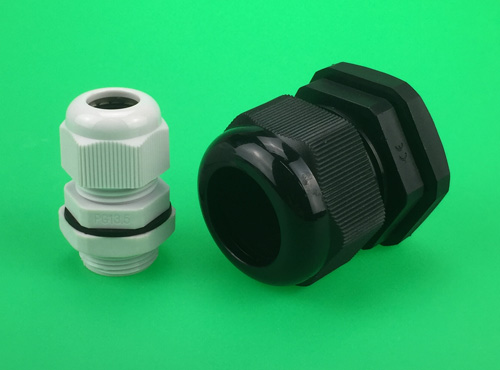

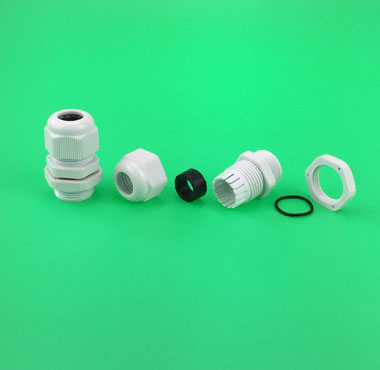

Name:	plastic cable gland PG Lengthen series
Material:	Nylon PA6
Seal:	NBR
Protection Grade:	IP68(with sealing）
Environment Temperature:	from -40℃ to 100℃(120℃ for short term)
Product Color:	Grey RAL7035;Black RAL9005,other color please inquire.
