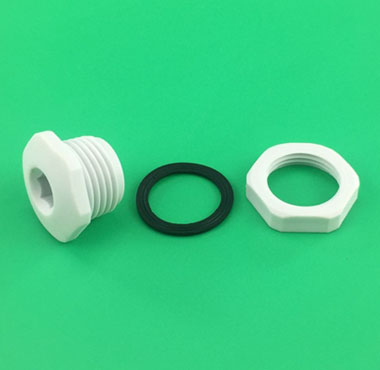

| Name: | plastic hexagon screw plug PG series |
| Material: | Nylon PA6 |
| Seal: | NBR |
| Protection Grade: | IP68(with sealing） |
| Environment Temperature: | from -40℃ to 100℃(120℃ for short term) |

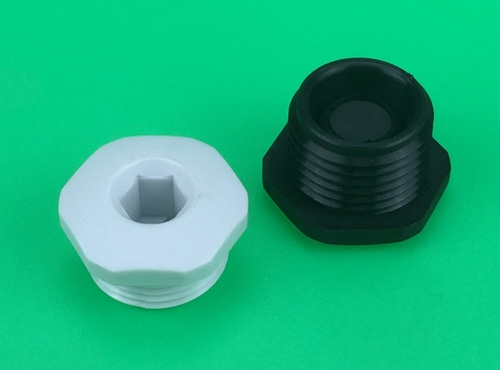

| Product Color: | Grey RAL7035;Black RAL9005,other color please inquire |
| 系列 | 规格 | 螺纹长度 | 本体高度 | 扳手直径 | 螺纹外径 | 内扳手直径 | 开孔尺寸 | 订货号 Order NO. | 包装 Packing | |

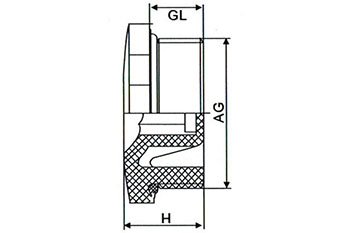

| Series | Thread | GL | H |
|
AG |
|
Panel Mounting Hole | 灰色 | 黑色 | 只/包 |
|
塑料六角形闷盖PG系列 plastic hexagon screw plug PG series |
mm | mm | mm | mm | mm | mm | Grey | Black | Pcs/Bag | |
| PG7 | 8.5 | 13 | 15 | 12.5 | 6 | 12.5-12.8 | P0760PA | P0761PA | 100 | |
| PG9 | 8.5 | 13 | 19 | 15.2 | 8 | 15.2-15.5 | P0960PA | P0961PA | 100 | |
| PG11 | 9 | 14.5 | 24 | 18.6 | 8 | 18.6-18.9 | P1160PA | P1161PA | 100 | |
| PG13.5 | 9 | 14.5 | 24 | 20.4 | 8 | 20.4-20.7 | P1360PA | P1361PA | 100 | |
| PG16 | 12 | 16 | 28 | 22.5 | 8 | 22.5-22.8 | P1660PA | P1661PA | 100 | |
| PG21 | 12 | 18 | 36 | 28.3 | 8 | 28.3-28.6 | P2160PA | P2161PA | 100 | |
| PG29 | 14 | 18 | 46 | 37 | 8 | 37-37.3 | P2960PA | P2961PA | 50 | |
| PG36 | 14 | 20 | 55 | 47 | 8 | 47-47.3 | P3660PA | P3661PA | 20 | |
| PG42 | 14 | 20 | 60 | 54 | 8 | 54-54.3 | P4260PA | P4261PA | 20 | |
| PG48 | 14 | 21 | 70 | 59.3 | 8 | 59.3-59.6 | P4860PA | P4861PA | 20 | |
