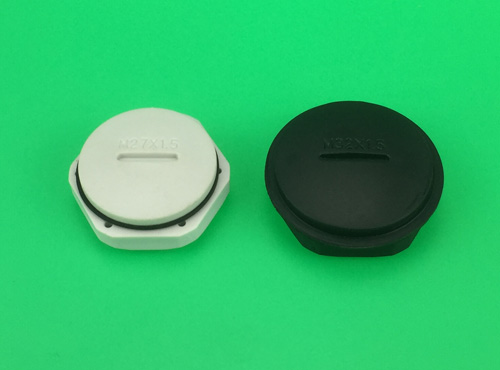

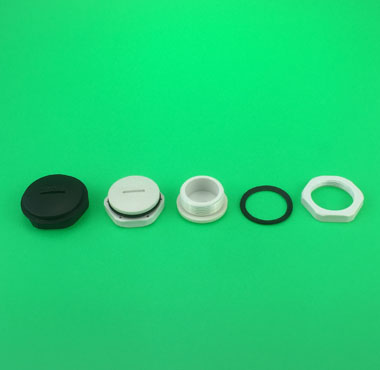

Name: plastic round screw plug M series
Material: Nylon PA6
Seal: NBR
Protection Grade: IP54
Environment Temperature: from -20℃ to 80℃
Product Color: Grey RAL7035;Black RAL9005,other color please inquire.
系列 规格 螺纹长度 本体高度 螺纹外径 平面直径 开孔尺寸 订货号  Order NO. 包装 Packing

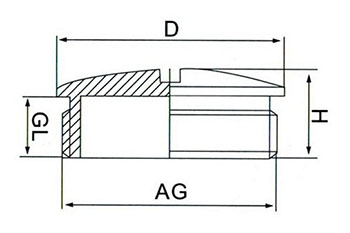

Series Thread GL H AG D Panel Mounting Hole 灰色 黑色 只/包
　 　 mm mm mm mm mm Grey Black Pcs/Bag
塑料圆形闷盖M系列
plastic round screw plug M series 		M12 8 12.5 12 15 12-12.3 M1210PA M1211PA 100
M16 8 13 16 19 16-16.3 M1610PA M1611PA 100
M18 9 13 18 22 18-18.3 M1810PA M1811PA 100
M20 9 13 20 25 20-20.3 M2010PA M2011PA 100
M22 10 15 22 27 22-22.3 M2210PA M2211PA 100
M25 10 15.5 25 30 25-25.3 M2510PA M2511PA 100
M27 10 15.5 27 33 27-27.3 M2710PA M2711PA 100
M32 10 16 32 38 32-32.3 M3210PA M3211PA 50
M40 11 16 40 46 40-40.3 M4010PA M4011PA 20
M50 13 18 50 56 50-50.3 M5010PA M5011PA 20
M63 14 19 63 68 63-63.3 M6310PA M6311PA 20
