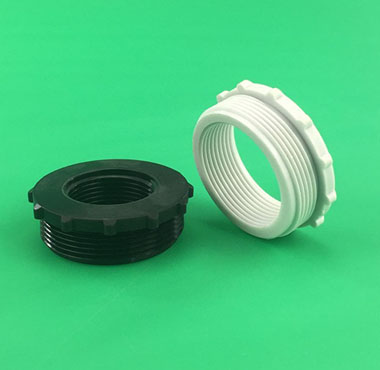

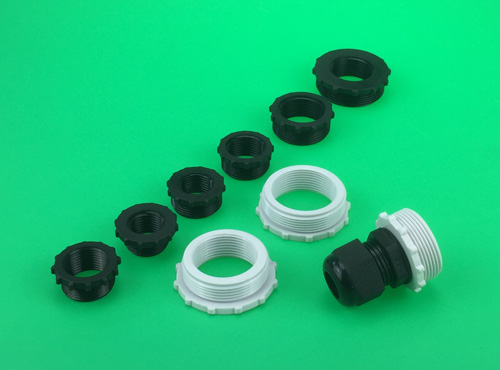

Name: plastic reduce connector M to M series
Material: Nylon PA6
Environment Temperature: from -20℃ to 80℃
Product Color: Grey RAL7035;Black RAL9005,other color please inquire.

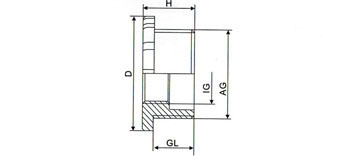

系列 规格 螺纹内径 螺纹长度 本体高度 螺纹外径 平面直径 开孔尺寸 订货号 Order NO. 包装 Packing
Series Thread IG GL H AG D Panel Mounting Hole 灰色 黑色 只/包
mm mm mm mm mm mm Grey Black Pcs/Bag
塑料缩径件 M 转 M 系列
plastic reduce connector M to M series 		M20-M12 M12x1.5 8 12 27 20 20-20.3 M20M120 M20M121 100
M20-M16 M16x1.5 8 12 27 20 20-20.3 M20M160 M20M161 100
M25-M16 M16x1.5 10 13 29 25 25-25.3 M25M160 M25M161 100
M25-M20 M20x1.5 10 13 29 25 25-25.3 M25M200 M25M201 50
M32-M20 M20x1.5 11 13.5 36 32 32-32.3 M32M200 M32M201 50
M32-M25 M25x1.5 11 13.5 36 32 32-32.3 M32M250 M32M251 50
M40-M25 M25x1.5 11 13.5 46 40 40-40.3 M40M250 M40M251 50
M40-M32 M32x1.5 11 13.5 46 40 40-40.3 M40M320 M40M321 50
M50-M32 M32x1.5 11 15 58 50 50-50.3 M50M320 M50M321 20
M50-M40 M40x1.5 11 15 58 50 50-50.3 M50M400 M50M401 20
