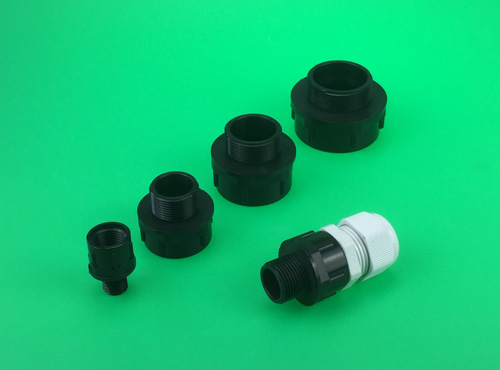

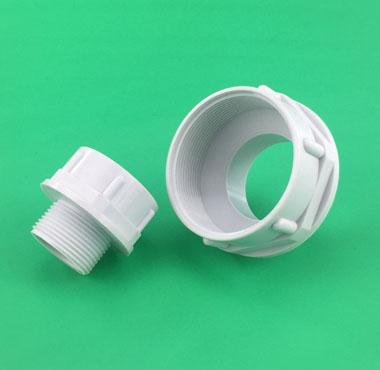

| Name: | plastic increase connector PG to M series |
| Material: | Nylon PA6 |
| Environment Temperature: | from -20℃ to 80℃ |
| Product Color: | Grey RAL7035;Black RAL9005,other color please inquire. |
| 系列 | 规格 | 螺纹内径 | 螺纹长度 | 本体高度 | 扳手直径 | 螺纹外径 | 开孔尺寸 | 订货号 Order NO. | 包装 Packing | |

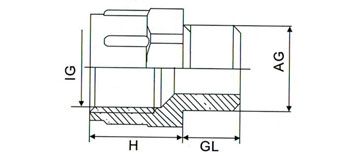

| Series | Thread | IG | GL | H |
|
AG | Panel Mounting Hole | 灰色 | 黑色 | 只/包 |
| mm | mm | mm | mm | mm | mm | Grey | Black | Pcs/Bag | ||
|
塑料增径件PG转M系列 plastic increase connector PG to M series |
PG7 | M16x1.5 | 15 | 19 | 20 | 12 | 12-12.3 | P07M160 | P07M161 | 100 |
| PG9 | M20x1.5 | 15 | 19 | 24 | 16 | 16-16.3 | P09M200 | P09M201 | 100 | |
| PG13.5 | M25x1.5 | 15 | 19 | 19 | 20 | 20-20.3 | P13M250 | P13M251 | 100 | |
| PG21 | M32x1.5 | 15 | 19 | 36 | 25 | 25-25.3 | P21M320 | P21M321 | 50 | |
| PG29 | M40x1.5 | 15 | 19.5 | 45 | 32 | 32-32.3 | P29M400 | P29M401 | 20 | |
| PG36 | M50x1.5 | 15 | 19.5 | 55 | 40 | 40-40.3 | P36M500 | P36M501 | 10 | |
| PG42 | M63x1.5 | 15 | 19.5 | 68 | 50 | 50-50.3 | P42M630 | P42M631 | 10 | |
