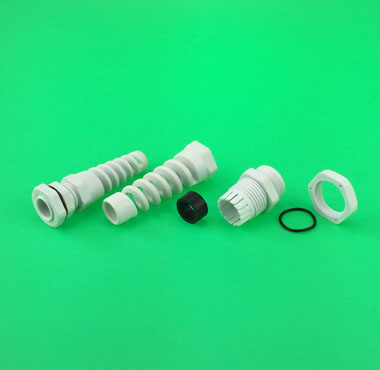

| Name: | plastic prevent bend connector BSC series |
| Material: | Nylon PA6 |
| Seal: | NBR |
| Protection Grade: | IP68(with sealing） |
| Environment Temperature: | from -40℃ to 100℃(120℃ for short term) |

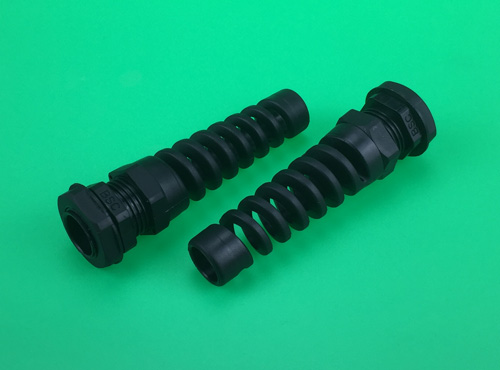

| Product Color: | Grey RAL7035;Black RAL9005,other color please inquire. |
| 系列 | 规格 | 电缆范围 | 螺纹长度 | 本体高度 | 扳手直径 | 螺纹外径 | 开孔尺寸 | 订货号 Order NO. | 包装 Packing | |

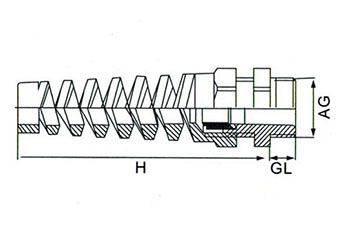

| Series | Thread |
|
GL | H |
|
AG | Panel Mounting Hole | 灰色 | 黑色 | 只/包 |
| mm | mm | mm | mm | mm | mm | Grey | Black | Pcs/Bag | ||
|
塑料防折弯接头BSC系列 plastic prevent bend connector BSC series |
BSC1/2 | 3-6.5 | 8 | 55 | 15/16 | 12.5 | 12.5-12.8 | B1208060F | B1208061F | 100 |
| BSC1/2 | 2-5 | 8 | 55 | 15/16 | 12.5 | 12.5-12.8 | B1208050F | B1208051F | 100 | |
| BSC5/8 | 4-8 | 8 | 70 | 19 | 15.7 | 15.7-16 | B5808080F | B5808081F | 100 | |
| BSC5/8 | 2-6 | 8 | 70 | 19 | 15.7 | 15.7-16 | B5808060F | B5808061F | 100 | |
| BSC3/4 | 6-12 | 9 | 90 | 24 | 18.8 | 18.8-19.1 | B3409120F | B3409121F | 50 | |
| BSC3/4 | 5-9 | 9 | 90 | 24 | 18.8 | 18.8-19.1 | B3409090F | B3409091F | 50 | |
| BSC7/8 | 10-14 | 10 | 100 | 27 | 22 | 22-22.3 | B7810140F | B7810141F | 20 | |
| BSC7/8 | 7-12 | 10 | 100 | 27 | 22 | 22-22.3 | B7810120F | B7810121F | 20 | |
| BSC1 | 13-18 | 10 | 112 | 33 | 25.2 | 25.3-25.5 | B1010180F | B1010181F | 20 | |
| BSC1 | 9-16 | 10 | 112 | 33 | 25.2 | 25.3-25.5 | B1010160F | B1010161F | 20 | |
