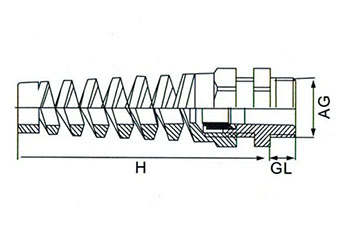

系列	规格	电缆范围	螺纹长度	本体高度	扳手直径	螺纹外径	开孔尺寸	订货号 Order NO.		包装 Packing
Series	Thread		GL	H		AG	Panel Mounting Hole	灰色	黑色	只/包
		mm	mm	mm	mm	mm	mm	Grey	Black	Pcs/Bag
塑料防折弯接头G系列 plastic prevent bend connector G series	G1/4	3-6.5	8	55	15/16	13.1	13.1-13.4	G1408060F	G1408061F	100
	G1/4	2-5	8	55	15/16	13.1	13.1-13.4	G1408050F	G1408051F	100
	G3/8	4-8	15	70	19	16.6	16.6-16.9	G3815080F	G3815081F	100
	G3/8	2-6	15	70	19	16.6	16.6-16.9	G3815060F	G3815061F	100
	G3/8	5-10	15	78	22	16.6	16.6-16.9	G3815100F	G3815101F	100
	G3/8	3-7	15	78	22	16.6	16.6-16.9	G3815070F	G3815071F	100
	G1/2	6-12	13	92	24	20.9	20.9-21.2	G1213120F	G1213121F	50
	G1/2	5-9	13	92	24	20.9	20.9-21.2	G1213090F	G1213091F	50
	G1/2	10-14	13	100	27	20.9	20.9-20.2	G1213140F	G1213141F	20
	G1/2	7-12	13	100	27	20.9	20.9-20.2	G1213130F	G1213131F	20
	G3/4	13-18	15	112	33	26.4	26.4-26.7	G3415180F	G3415181F	20
	G3/4	9-16	15	112	33	26.4	26.4-26.7	G3415160F	G3415161F	20

Inquiry

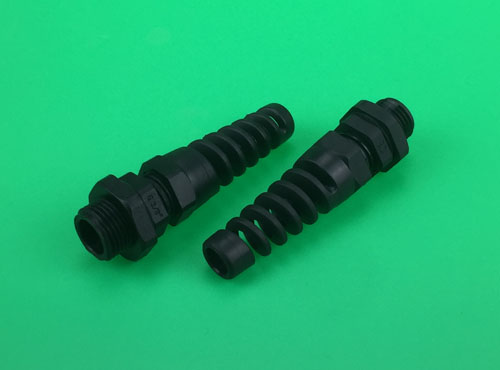

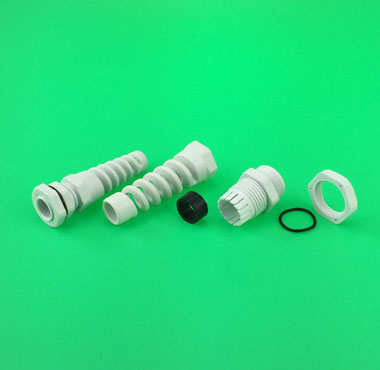

Name:	plastic prevent bend connector G series
Material:	Nylon PA6
Seal:	NBR
Protection Grade:	IP68(with sealing）
Environment Temperature:	from -40℃ to 100℃(120℃ for short term)
Product Color:	Grey RAL7035;Black RAL9005,other color please inquire.
