0Material: UL approved Nylon PA66, 94V-2
Color: Black,other color can be customized
Universal design to hold various cable range with a fix size.

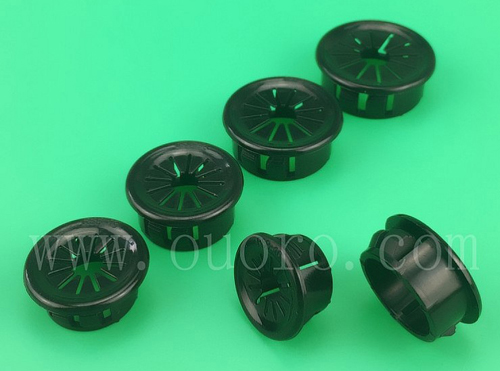

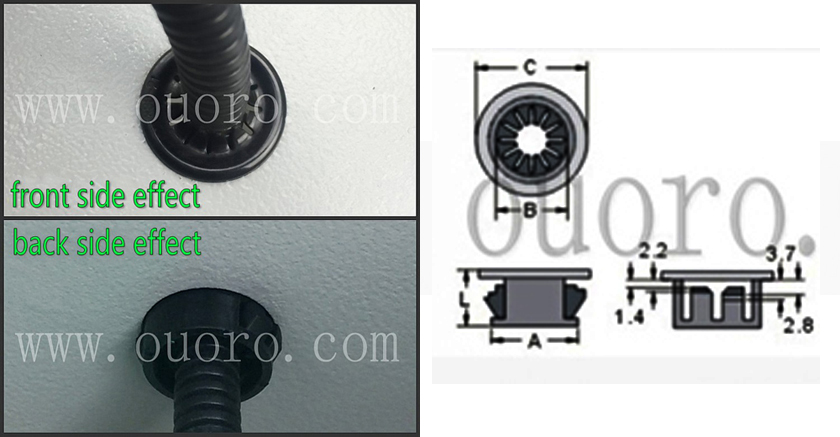

Snap Bushing
Unit: mm
Item No. Mounting Hole
A 		Borehole range B  C L  Packing
mm inch
RSB-16 15.83 5/8" 15.93～16.84 11 20.47 10.61 200 pcs / Bag
RSB-19 18.8 3/4" 18.9～19.8 11.6 24.04 10.11 200 pcs / Bag
RSB-21 20.67 13/16" 20.7～21.9 11.7 24.37 10.28 200 pcs / Bag
RSB-22 21.73 7/8" 21.8～22.74 13.3 25.37 11.59 200 pcs / Bag
RSB-25 24.71 1" 24.8～25.7 19.4 28.86 11.52 200 pcs / Bag
RSB-28 27.68 1-3/32"  27.72～28.78 21.4 31.35 11.6 200 pcs / Bag
RSB-35 34.5 1-3/8" 34.7～36 30 38.58 11.7 100 pcs / Bag
RSB-38 37.26 1-1/2" 37.2～39 32 41.3 11.42 100 pcs / Bag
