Material: UL approved Nylon PA66, 94V-2,accord with ROHS
Color: Black,other color can be customized
Protect power cord and smooth you chasis hole. Under 3mm chassis. Finger-tip pressure to install. No tool is needed. Can be applied after power cable was installed.

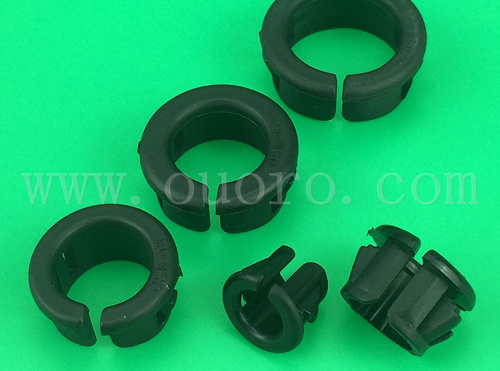

Bushing (Open/Close)

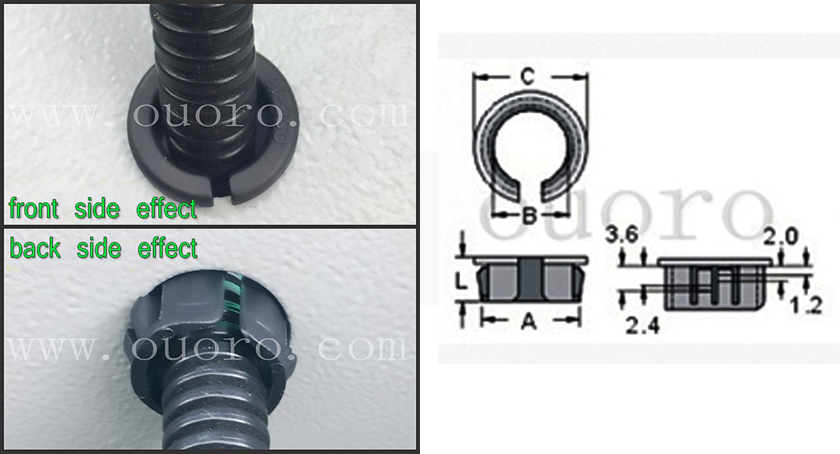

Unit: mm
Item No. Mounting Hole
A 		Borehole range B  C  L  Packing
mm inch
OSB-10 8.7 3/8" 8.1～10.35 6.6 12 9.55 500 pcs / Bag
OSB-13 12.68 1/2" 12.68～14.15 10 15.71 10.37 500 pcs / Bag
OSB-16 15.62 5/8" 15.12～16.77 11.91 18.63 10.42 200 pcs / Bag
OSB-19 18.72 3/4" 18.22～20.16 13.12 21.81 10.35 200 pcs / Bag
OSB-22 21.39 7/8" 20.89～22.96 16.62 24.72 10.35 200 pcs / Bag
