Material: UL approved Nylon PA66, 94V-2
Color: black, other color can be customized

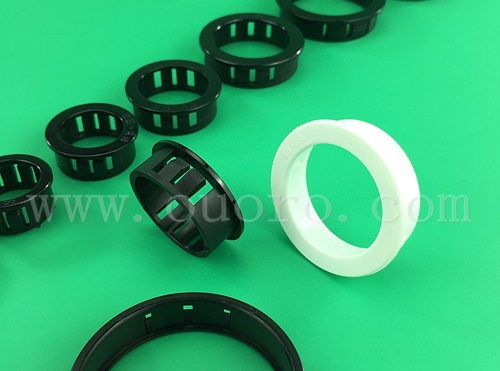

OUORO SNAP BUSHING smooth and insulate your raw-edged holes in metal chassis. Locking into hole firmly with fingertip pressure. Protect electrical cables, ropes, utility lines through metal holes. Available in application for chassis thickness Under 3mm

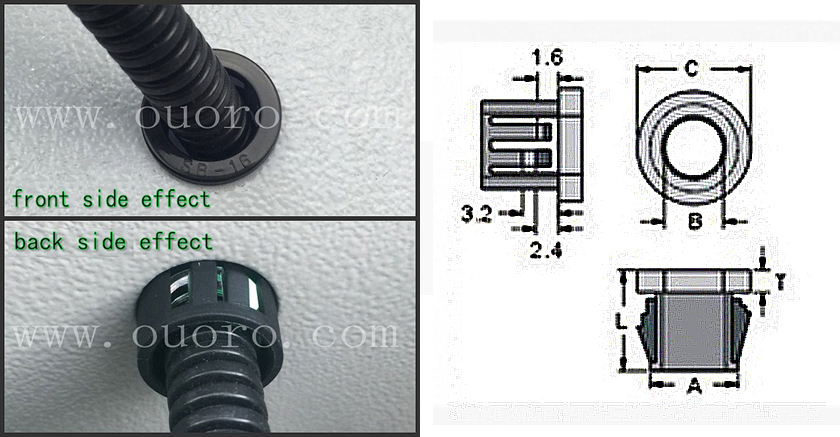

Unit: mm
Item No.	Mounting Hole A		Borehole range	B	C	L	T	Packing
	mm	inch
SB-8	7.8	5/16"	7.9～8.2	6.4	9.5	8.1	1.5	500pcs / Bag
SB-10	9.5	3/8"	9.6～10.2	6.5	12	10.6	1.5	500pcs / Bag
SB-11	10.86		10.9～12	8.39	13.63	10.08	1.47	500pcs / Bag
SB-13	12.8	1/2"	12.9～13.9	9.4	14.7	10.52	1.51	500pcs / Bag
SB-16	15.9	5/8"	16～17.2	12.7	18.7	10.3	1.5	200pcs / Bag
SB-19	18.85	3/4"	18.9～19.5	14.4	21.8	10.36	1.53	200pcs / Bag
SB-22	21.58	7/8"	21.7～22.74	17.5	24	11.64	1.55	200pcs / Bag
SB-26	25.5	1"	25.6～26.4	19.4	28.38	11.45	1.46	200pcs / Bag
SB-30	29.82	1-3/16"	30～30.6	24.43	33.58	11.36	1.45	100pcs / Bag
SB-38	37.68	1-1/2"	37.8～38.5	29.8	41.48	11.47	1.63	100pcs / Bag
SB-45	44.02	1-3/4"	44.1～45.34	37.35	48.79	11.35	1.63	100pcs / Bag
SB-50	49.25	2"	49.3～50.6	41.74	53.88	11.52	1.52	100pcs / Bag
