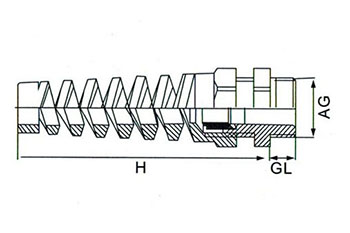

系列	规格	电缆范围	螺纹长度	本体高度	扳手直径	螺纹外径	开孔尺寸	订货号 Order NO.		包装 Packing
Series	Thread		GL	H		AG	Panel Mounting Hole	灰色	黑色	只/包
		mm	mm	mm	mm	mm	mm	Grey	Black	Pcs/Bag
塑料防折弯接头NPT系列 plastic prevent bend connector NPT series	NPT1/4	3-6.5	8	55	15/16	13.7	13.7-14	N1408060F	N1408061F	100
	NPT1/4	2-5	8	55	15/16	13.7	13.7-14	N1408050F	N1408051F	100
	NPT3/8	4-8	15	70	19/20	17	17-17.3	N3815080F	N3815081F	100
	NPT3/8	2-6	15	70	19/20	17	17-17.3	N3815060F	N3815061F	100
	NPT3/8	5-10	15	78	22	17	17-17.3	N3815100F	N3815101F	100
	NPT3/8	3-7	15	78	22	17	17-17.3	N3815070F	N3815071F	100
	NPT1/2	6-12	13	92	24	21.2	21.2-21.5	N1213120F	N1213121F	50
	NPT1/2	5-9	13	92	24	21.2	21.2-21.5	N1213090F	N1213091F	50
	NPT1/2	10-14	13	100	27	21.2	21.2-21.5	N1213140F	N1213141F	20
	NPT1/2	7-12	13	100	27	21.2	21.2-21.5	N1213130F	N1213131F	20
	NPT3/4	13-18	15	112	33/34	26.2	26.2-26.5	N3415180F	N3415181F	20
	NPT3/4	9-16	15	112	33/34	26.2	26.2-26.5	N3415160F	N3415161F	20

Inquiry

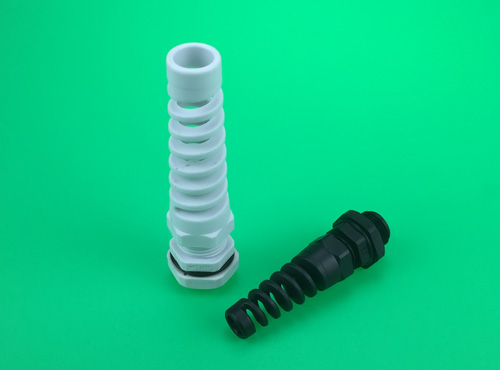

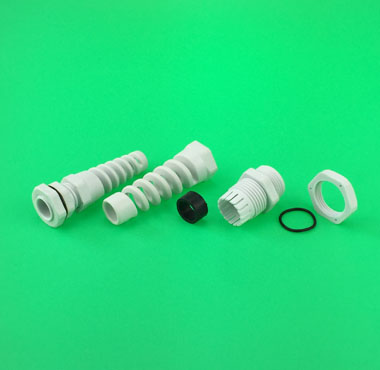

Name:	plastic prevent bend connector NPT series
Material:	Nylon PA6
Seal:	NBR
Protection Grade:	IP68(with sealing）
Environment Temperature:	from -40℃ to 100℃(120℃ for short term)
Product Color:	Grey RAL7035;Black RAL9005,other color please inquire.
