| 系列 | 规格 | 螺纹长度 | 本体高度 | 扳手直径 | 螺纹外径 | 内扳手直径 | 开孔尺寸 | 订货号 Order NO. | 包装 packing | |

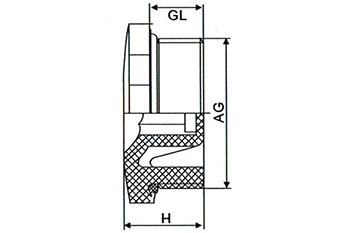

| Series | Thread | GL | H |
|
AG |
|
Panel Mounting Hole | 灰色 | 黑色 | 只/包 |
| mm | mm | mm | mm | mm | mm | Grey | Black | pcs/bag | ||
|

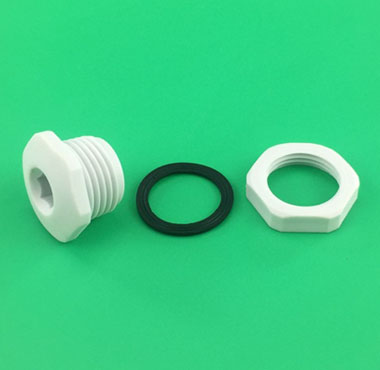

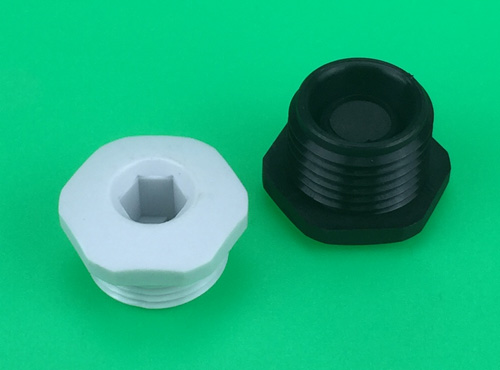

塑料六角形闷盖M系列 plastic hexagon screw plug M series |
M12x1.5 | 8.5 | 13 | 15 | 12 | 6 | 12-12.3 | M1260PA | M1261PA | 100 |
| M16x1.5 | 8.5 | 13 | 19 | 16 | 8 | 16-16.3 | M1660PA | M1661PA | 100 | |
| M18x1.5 | 9 | 14.5 | 24 | 18 | 8 | 18-18.3 | M1860PA | M1861PA | 100 | |
| M20x1.6 | 9 | 14.5 | 24 | 20 | 8 | 20-20.3 | M2060PA | M2061PA | 100 | |
| M22x1.6 | 11 | 16 | 28 | 22 | 8 | 22-22.3 | M2260PA | M2261PA | 100 | |
| M25x1.5 | 12 | 17 | 28 | 25 | 8 | 25-25.3 | M2560PA | M2561PA | 100 | |
| M32x1.5 | 12 | 18 | 36 | 32 | 8 | 32-32.3 | M3260PA | M3261PA | 50 | |
| M40x1.6 | 14 | 18 | 46 | 40 | 8 | 40-40.3 | M4060PA | M4061PA | 20 | |
| M50x1.7 | 14 | 20 | 55 | 50 | 8 | 50-50.3 | M5060PA | M5061PA | 20 | |
| M63x1.8 | 14 | 21 | 70 | 63 | 8 | 63-63.3 | M6360PA | M6361PA | 20 | |
