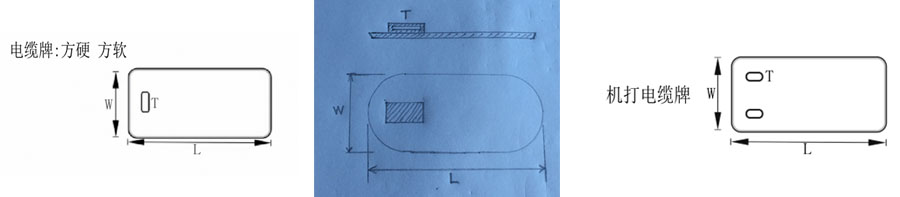

产品名称 | 型号 | L | W | T扎带孔(mm) | 厚度(mm) |
name | Model | (mm) | (mm) | T cable tie hole(mm) | thickness(mm) |

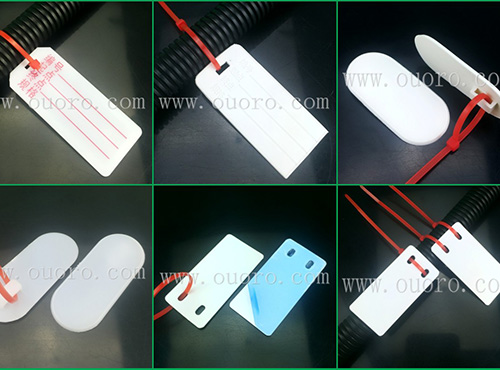

电缆牌 marker plate | 方硬(square and hard)72×32 | 71.75 | 31.11 | 5.3×1.9 | 1.83 |
方软(square and soft)66×32 | 65.5 | 31.38 | 7.3×3.1 | 1.61 | |
圆硬(round and hard)56×24 | 55.47 | 23.78 | 10×1.56 | 1.68/4.82 | |
圆软(round and soft)55×26 | 54.3 | 26 | 8.6×2.8 | 1.73/5.25 | |
机打(machine printing for)60×30 | 61.17 | 30.32 | (6.6×3.6)×2 | 1.02 | |
机打(machine printing for)70×30 | 68.85 | 32.27 | (6.7×4.1)×2 | 1.02 |
