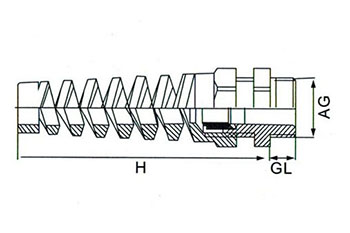

系列	规格	电缆范围	螺纹长度	本体高度	扳手直径	螺纹外径	开孔尺寸	订货号 Order NO.		包装 Packing
Series	Thread		GL	H		AG	Panel Mounting Hole	灰色	黑色	只/包
		mm	mm	mm	mm	mm	mm	Grey	Black	Pcs/Bag
塑料防折弯接头M系列 plastic prevent bend connector M series	M12x1.5	3-6.5	8	55	15/16	12	12-12.3	M1208060F	M1208061F	100
	M12x1.5	2-5	8	55	15/16	12	12-12.3	M1208050F	M1208051F	100
	M14x1.5	4-8	8	70	19	14	14-14.3	M1408080F	M1408081F	100
	M14x1.5	2-6	8	70	19	14	14-14.3	M1408060F	M1408061F	100
	M16x1.5	4-8	8	70	19	16	16-16.3	M1608080F	M1608081F	100
	M16x1.5	2-6	8	70	19	16	16-16.3	M1608060F	M1608061F	100
	M16x1.5	5-10	8	78	22	16	16-16.3	M1608100F	M1608101F	100
	M16x1.5	3-7	8	78	22	16	16-16.3	M1608070F	M1608071F	100
	M18x1.5	5-10	8	78	22	18	18-18.3	M1808100F	M1808101F	100
	M18x1.5	3-7	8	78	22	18	18-18.3	M1808070F	M1808071F	100
	M20x1.5	6-12	9	90	24	20	20-20.3	M2009120F	M2009121F	50
	M20x1.5	5-9	9	90	24	20	20-20.3	M2009090F	M2009091F	50
	M20x1.5	10-14	10	100	27	20	20-20.3	M2010140F	M2010141F	20
	M20x1.5	7-12	10	100	27	20	20-20.3	M2010130F	M2010131F	20
	M22x1.5	10-14	10	100	27	22	22-22.3	M2210140F	M2210141F	20
	M22x1.5	7-12	10	100	27	22	22-22.3	M2210120F	M2210121F	20
	M25x1.5	13-18	10	112	33	25	25-25.3	M2510180F	M2510181F	20
	M25x1.5	9-16	10	112	33	25	25-25.3	M2510160F	M2510161F	20
	M27x1.5	13-18	10	112	33	27	27-27.3	M2710180F	M2710181F	20
	M27x1.5	9-16	10	112	33	27	27-27.3	M2710160F	M2710161F	20

Inquiry

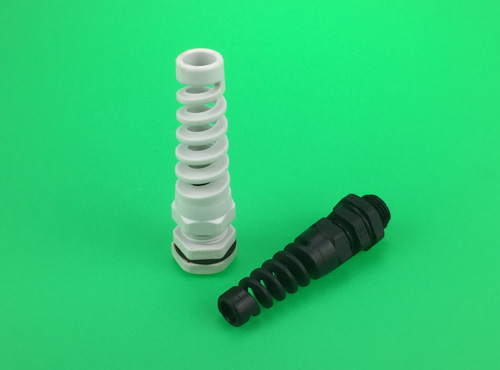

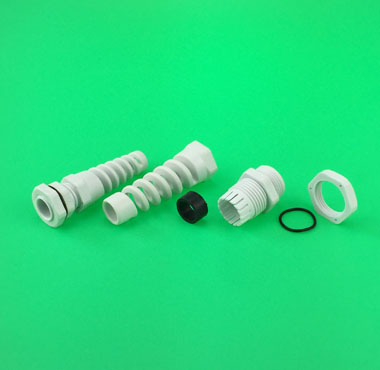

Name:	plastic prevent bend connector M series
Material:	Nylon PA6
Seal:	NBR
Protection Grade:	IP68(with sealing）
Environment Temperature:	from -40℃ to 100℃(120℃ for short term)
Product Color:	Grey RAL7035;Black RAL9005,other color please inquire.
