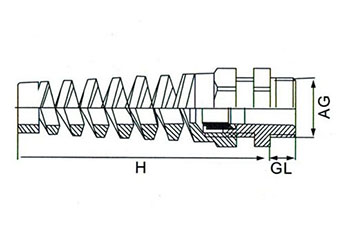

系列	规格	电缆范围	螺纹长度	本体高度	扳手直径	螺纹外径	开孔尺寸	订货号 Order NO.		包装 Packing
Series	Thread		GL	H		AG	Panel Mounting Hole	灰色	黑色	只/包
		mm	mm	mm	mm	mm	mm	Grey	Black	Pcs/Bag
塑料防折弯接头PG加长系列 plastic prevent bend connector PG Lengthen series	PG7	3-6.5	15	55	15/16	12.5	12.5-12.8	P0715060F	P0715061F	100
	PG7	2-5	15	55	15/16	12.5	12.5-12.8	P0715050F	P0715051F	100
	PG9	4-8	15	70	19	15.2	15.2-15.5	P0915080F	P0915081F	100
	PG9	2-6	15	70	19	15.2	15.2-15.5	P0915060F	P0915061F	100
	PG11	5-10	15	78	22	18.6	18.6-18.9	P1115100F	P1115101F	50
	PG11	3-7	15	78	22	18.6	18.6-18.9	P1115070F	P1115071F	50
	PG13.5	6-12	15	90	24	20.4	20.4-20.7	P1315120F	P1315121F	50
	PG13.5	5-9	15	90	24	20.4	20.4-20.7	P1315090F	P1315091F	50
	PG16	10-14	15	100	27	22.5	22.5-22.8	P1615140F	P1615141F	20
	PG16	7-12	15	100	27	22.5	22.5-22.8	P1615120F	P1615121F	20
	PG21	13-18	15	112	33	28.3	28.3-28.6	P2115180F	P2115181F	20
	PG21	9-16	15	112	33	28.3	28.3-28.6	P2115160F	P2115161F	20

Inquiry

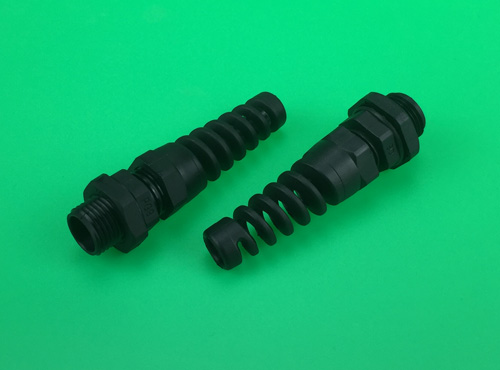

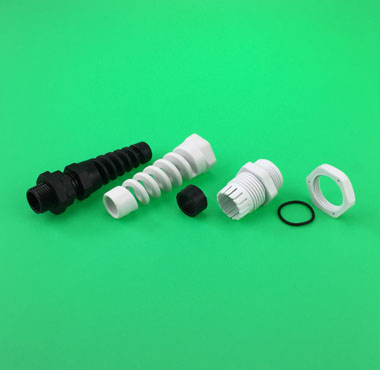

Name:	plastic prevent bend connector PG Lengthen series
Material:	Nylon PA6
Seal:	NBR
Protection Grade:	IP68(with sealing）
Environment Temperature:	from -40℃ to 100℃(120℃ for short term)
Product Color:	Grey RAL7035;Black RAL9005,other color please inquire.
