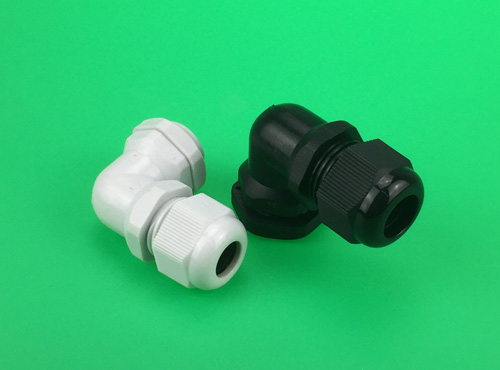

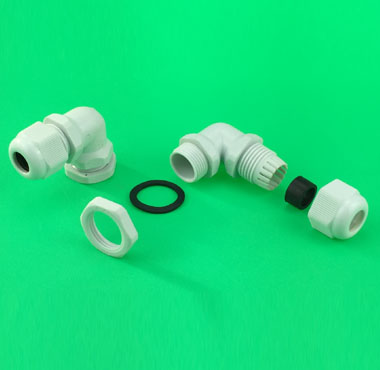

Name: plastic elbow connector NPT series
Material: Nylon PA6
Seal: NBR
Protection Grade: IP68(with sealing）
Environment Temperature: from -40℃ to 100℃(120℃ for short term)
Product Color: Grey RAL7035;Black RAL9005,other color please inquire.

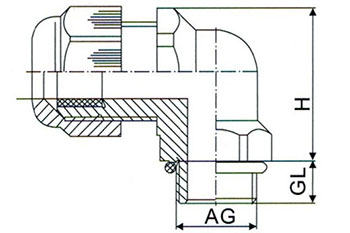

系列 规格 电缆范围 螺纹长度 本体高度 扳手直径 螺纹外径 开孔尺寸 订货号 Order NO. 包装 Packing
Series Thread GL H AG Panel Mounting Hole 灰色 黑色 只/包
　 　 mm mm mm mm mm mm Grey Black Pcs/Bag
塑料弯角接头NPT系列
plastic elbow connector NPT series 		NPT3/8 4-8 13 42 19 17 17-17.3 N38080W N38081W 100
NPT3/8 2-6 13 42 19 17 17-17.3 N38060W N38061W 100
NPT1/2 6-12 13 43 24 21.2 21.2-21.5 N12120W N12121W 50
NPT1/2 5-9 13 43 24 21.2 21.2-21.5 N12090W N12091W 50
NPT3/4 13-18 13 58 33 26.2 26.2-26.5 N34180W N34181W 20
NPT3/4 9-16 13 58 33 26.2 26.2-26.5 N34160W N34161W 20
NPT1 18-25 15 72 41/42 33.3 33.3-33.6 N10250W N10251W 20
NPT1 13-20 15 72 41/42 33.3 33.3-33.6 N10200W N10201W 20
