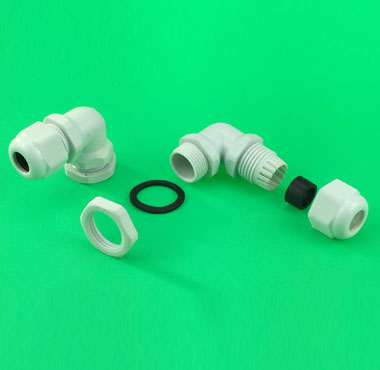

| Name: | plastic elbow connector M series |
| Material: | Nylon PA6 |
| Seal: | NBR |
| Protection Grade: | IP68(with sealing） |
| Environment Temperature: | from -40℃ to 100℃(120℃ for short term) |

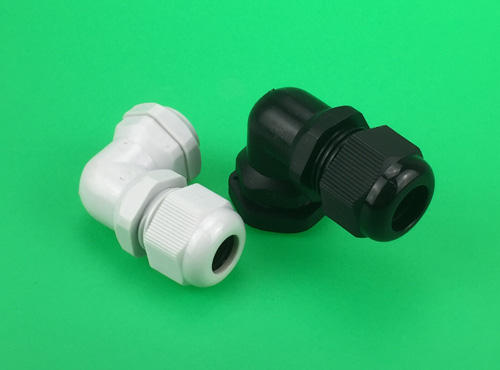

| Product Color: | Grey RAL7035;Black RAL9005,other color please inquire. |
| 系列 | 规格 | 电缆范围 | 螺纹长度 | 本体高度 | 扳手直径 | 螺纹外径 | 开孔尺寸 | 订货号 Order NO. | 包装 Packing | |

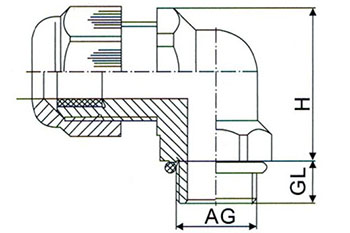

| Series | Thread |
|
GL | H |
|
AG | Panel Mounting Hole | 灰色 | 黑色 | 只/包 |
| mm | mm | mm | mm | mm | mm | Grey | Black | Pcs/Bag | ||
|
塑料弯角接头M系列 plastic elbow connector M series |
M16x1.5 | 4-8 | 8 | 37 | 19 | 16 | 16-16.3 | M16080W | M16081W | 100 |
| M16x1.5 | 2-6 | 8 | 37 | 19 | 16 | 16-16.3 | M16060W | M16061W | 100 | |
| M18x1.5 | 5-10 | 8 | 39 | 22 | 18 | 18-18.3 | M18100W | M18101W | 50 | |
| M18x1.5 | 3-7 | 8 | 39 | 22 | 18 | 18-18.3 | M18070W | M18071W | 50 | |
| M20x1.5 | 6-12 | 9 | 43 | 24 | 20 | 20-20.3 | M20120W | M20121W | 50 | |
| M20x1.5 | 5-9 | 9 | 43 | 24 | 20 | 20-20.3 | M20090W | M20091W | 50 | |
| M22x1.5 | 10-14 | 10 | 48 | 27 | 22 | 22-22.3 | M22140W | M22141W | 50 | |
| M22x1.5 | 7-12 | 10 | 48 | 27 | 22 | 22-22.3 | M22120W | M22121W | 50 | |
| M25x1.5 | 13-18 | 11 | 56 | 33 | 25 | 25-25.3 | M25180W | M25181W | 20 | |
| M25x1.5 | 9-16 | 11 | 56 | 33 | 25 | 25-25.3 | M25160W | M25161W | 20 | |
| M32x1.5 | 18-25 | 11 | 68 | 41/42 | 32 | 32-32.3 | M32250W | M32251W | 20 | |
| M32x1.5 | 13-20 | 11 | 68 | 41/42 | 32 | 32-32.3 | M32200W | M32201W | 20 | |
