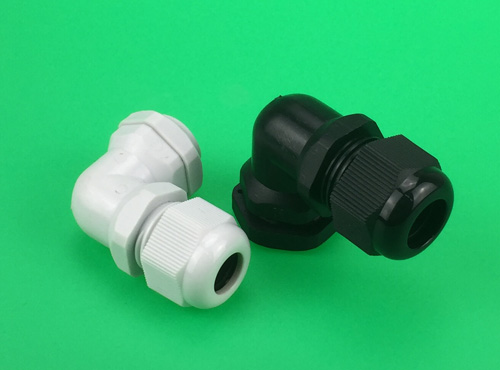

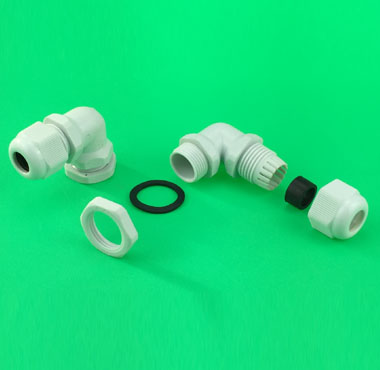

Name: plastic elbow connector PG series
Material: Nylon PA6
Seal: NBR
Protection Grade: IP68(with sealing）
Environment Temperature: from -40℃ to 100℃(120℃ for short term)
Product Color: Grey RAL7035;Black RAL9005,other color please inquire.
系列 规格 电缆范围 螺纹长度 本体高度 扳手直径 螺纹外径 开孔尺寸 订货号 Order NO. 包装 Packing

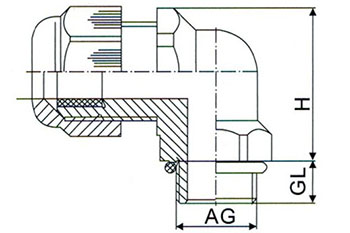

Series Thread GL H AG Panel Mounting Hole 灰色 黑色 只/包
　 　 mm mm mm mm mm mm Grey Black Pcs/Bag
塑料弯角接头PG系列
plastic elbow connector PG series 		PG9 4-8 8 37 19 15.2 15.2-15.5 P09080W P09081W 100
PG9 2-6 8 37 19 15.2 15.2-15.5 P09060W P09061W 100
PG11 5-10 8 39 22 18.6 18.6-18.9 P11100W P11101W 50
PG11 3-7 8 39 22 18.6 18.6-18.9 P11070W P11071W 50
PG13.5 6-12 9 43 24 20.4 20.4-20.7 P13120W P13121W 50
PG13.5 5-9 9 43 24 20.4 20.4-20.7 P13090W P13091W 50
PG16 10-14 10 48 27 22.5 22.5-22.8 P16140W P16141W 50
PG16 7-12 10 48 27 22.5 22.5-22.8 P16120W P16121W 50
PG21 13-18 11 56 33 28.3 28.3-28.6 P21180W P21181W 20
PG21 9-16 11 56 33 28.3 28.3-28.6 P21160W P21161W 20
PG29 18-25 11 68 41/42 37 37-37.3 P29250W P29251W 20
PG29 13-20 11 68 41/42 37 37-37.3 P29200W P29201W 20
