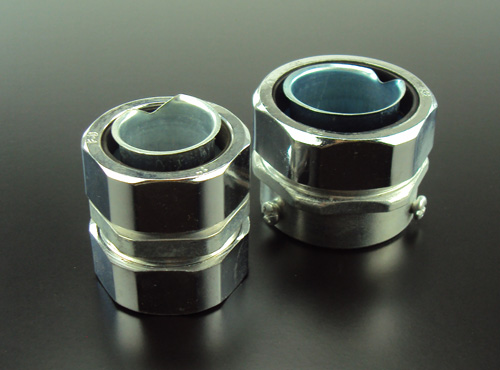

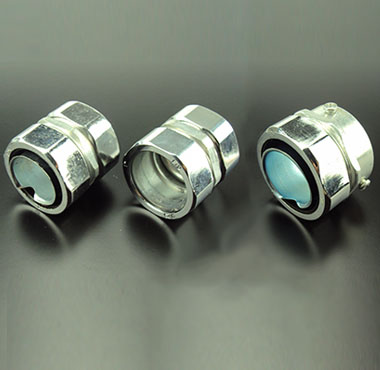

| Name: | Zinc alloy Clip set type Self fixing type hose joint series |
| Material: | use zinc alloy, the surface is galvanized |
| Protection Grade: | IP65 |
| 金属软管规格 Metal hose size | 尺寸 Size(mm) | 包装 Packing 只/箱 (Pcs/Carton) | ||||||||

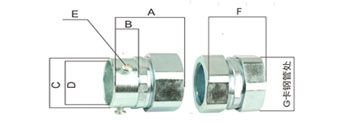

| 软管尺寸 hose size | 英制 Inch system | A | B | C | D | E | F | G | 卡套式 Clip set type | 自固式 Self fixing type |
| Φ13mm | G3/8 | 31.5 | 10.5 | 22 | 18 | M4Χ7 | 37 | 17.5 | 650 | 400 |
| Φ15/16mm | G1/2 | 35 | 13 | 26.5 | 22.5 | M4Χ7 | 42 | 21.5 | 450 | 350 |
| Φ20mm | G3/4 | 38 | 13 | 31.6 | 27.3 | M4Χ7 | 46 | 27 | 300 | 220 |
| Φ25mm | G1 | 40 | 13 | 39 | 34.2 | M4Χ7 | 49 | 33.6 | 200 | 150 |
| Φ32mm | G1-1/4 | 42 | 15 | 49 | 43 | M5Χ8 | 49 | 42.5 | 125 | 100 |
| Φ38mm | G1-1/2 | 46 | 15 | 55 | 49 | M5Χ8 | 54 | 48.2 | 100 | 90 |
| Φ51mm | G2 | 50 | 17 | 69 | 61.5 | M5Χ8 | 62 | 60.2 | 50 | 50 |
| Φ64mm | G2-1/2 | 64 | 22.5 | 84 | 76.5 | M6Χ10 | 73 | 76 | 30 | 30 |
| Φ75mm | G3 | 66 | 22.5 | 96 | 89 | M6Χ10 | 77 | 89 | 25 | 20 |
| Φ100mm | G4 | 75 | 25 | 125 | 116 | M6Χ10 | 86 | 115 | 14 | 12 |
