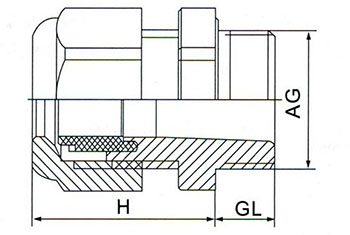

系列	规格	电缆范围	螺纹长度	本体高度	扳手直径	螺纹外径	开孔尺寸	订货号 Order NO.		包装 Packing
Series	Thread		GL	H		AG	Panel Mounting Hole	灰色	黑色	只/包
		mm	mm	mm	mm	mm	mm	Grey	Black	Pcs/Bag
塑料电缆接头BSC系列 plastic cable gland BSC series	BSC1/2	3-6.5	8	22	15/16	12.5	12.5-12.8	B1208060	B1208061	100
	BSC1/2	2-5	8	22	15/16	12.5	12.5-12.8	B1208050	B1208051	100
	BSC5/8	4-8	8	26	19	15.7	15.7-16	B5808080	B5808081	100
	BSC5/8	2-6	8	26	19	15.7	15.7-16	B5808060	B5808061	100
	BSC3/4	6-12	9	28	24	18.8	18.8-19.1	B3409120	B3409121	100
	BSC3/4	5-9	9	28	24	18.8	18.8-19.1	B3409090	B3409091	100
	BSC7/8	10-14	10	30	27	22	22-22.3	B7810140	B7810141	100
	BSC7/8	7-12	10	30	27	22	22-22.3	B7810120	B7810121	100
	BSC1	13-18	10	35	33	25.2	25.3-25.5	B1010180	B1010181	100
	BSC1	9-16	10	35	33	25.2	25.3-25.5	B1010160	B1010161	100
	BSC1 1/4	18-25	15	40	41/42	31.5	31.5-31.8	B1515250	B1515251	50
	BSC1 1/4	13-20	15	40	41/42	31.5	31.5-31.8	B1515200	B1515201	50
	BSC1 1/2	22-32	15	48	52/53	37.8	37.8-38.1	B1315320	B1315321	20
	BSC1 1/2	20-26	15	48	52/53	37.8	37.8-38.1	B1315260	B1315261	20
	BSC2	37-44	15	50	64/65	50.3	50.3-50.6	B2015440	B2015441	20
	BSC2	29-35	15	50	64/65	50.3	50.3-50.6	B2015350	B2015351	20

Inquiry

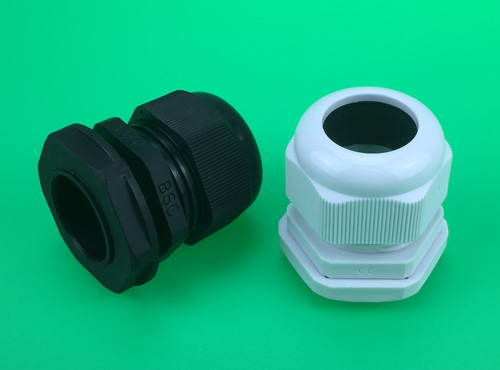

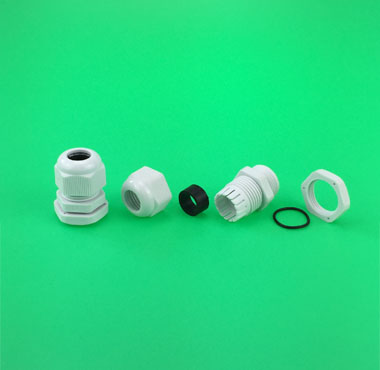

Name:	plastic cable gland BSC series
Material:	Nylon PA6
Seal:	NBR
Protection Grade:	IP68(with sealing）
Environment Temperature:	from -40℃ to 100℃(120℃ for short term)
Product Color:	Grey RAL7035;Black RAL9005,other color please inquire.
