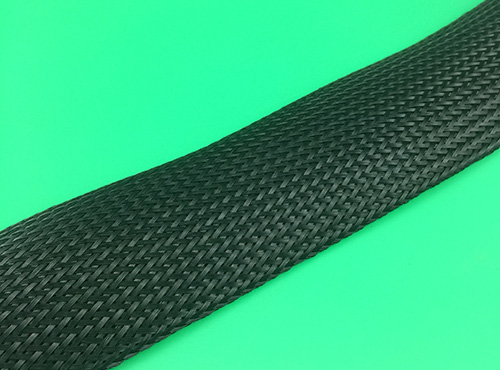

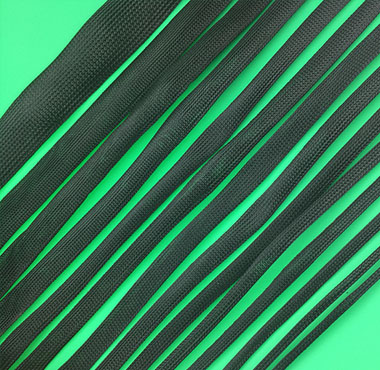

| Name: | PET braid pipe series |
| Material: | polyester |
| Color: | Black,other color please inquire |
| Temperature: | from -50℃ to 150℃ |
| Melting point: | 240±10℃ |
| Flame retardant grade: | vw-1 |
| 规格（扁径） | 丝数*锭数*线径 | 包装(米/卷) | 重量（千克/卷） |
| size(flat diameter) | wires number*spindle number*wire diameter(mm) | packing(meter/roll) | weight(kgs/roll) |
| 4mm | 3*24*0.2 | 500 | 1.98 |
| 6mm | 3*24*0.25 | 300 | 1.8 |
| 8mm | 3*40*0.2 | 300 | 2.14 |
| 10mm | 3*44*0.2 | 300 | 2.18 |
| 12mm | 3*40*0.25 | 200 | 2 |
| 14mm | 3*48*0.25 | 200 | 2.4 |
| 16mm | 3*56*0.25 | 200 | 2.8 |
| 18mm | 3*72*0.2 | 200 | 2.44 |
| 20mm | 3*65*0.25 | 200 | 1.67 |
| 25mm | 3*72*0.25 | 100 | 1.82 |
| 30mm | 3*84*0.25 | 100 | 2.12 |
| 35mm | 3*96*0.25 | 100 | 2.44 |
| 40mm | 3*120*0.25 | 100 | 2.9 |
| 50mm | 4*120*0.25 | 100 | 4.2 |
| 60mm | 5*120*0.25 | 100 | 4.94 |
