Yueqing City OUORO Electric Co.,Ltd，cable marker，tie mount，snap bushing

系列	规格	电缆范围	螺纹长度	扳手直径	螺纹外径	开孔尺寸	订货号 Order NO.		包装 Packing
Series	Thread		GL		AG	Panel Mounting Hole	灰色	黑色	只/包
		mm	mm	mm	mm	mm	Grey	Black	Pcs/Bag
塑料电缆接头MG系列 plastic cable gland MG series	MG12	4.5-8	9	17/19	12	12-12.3	MG12080	MG12081	100
	MG12	3-5.3	9	17/19	12	12-12.3	MG12050	MG12051	100
	MG16	6-10	15	22	16	16-16.3	MG16100	MG16101	100
	MG16	4-7	15	22	16	16-16.3	MG16070	MG16071	100
	MG20	9-14	15	26/27	20	20-20.3	MG20140	MG20141	100
	MG20	6-11	15	26/27	20	20-20.3	MG20110	MG20111	100
	MG25	13-18	15	32/33	25	25-25.3	MG25180	MG25181	50
	MG25	10-16	15	32/33	25	25-25.3	MG25160	MG25161	50
	MG32	18-25	15	41	32	32-32.3	MG32250	MG32251	50
	MG32	15-22	15	41	32	32-32.3	MG32220	MG32221	50
	MG40	24-30	20	50	40	40-40.3	MG40300	MG40301	20
	MG40	20-25	20	50	40	40-40.3	MG40250	MG40251	20
	MG50	30-40	23	60/62	50	50-50.3	MG50400	MG50401	10
	MG50	26-32	23	60/62	50	50-50.3	MG50320	MG50321	10
	MG63	40-50	24	73/75	63	63-63.3	MG63500	MG63501	4
	MG63	38-46	24	73/75	63	63-63.3	MG63460	MG63461	4

Inquiry

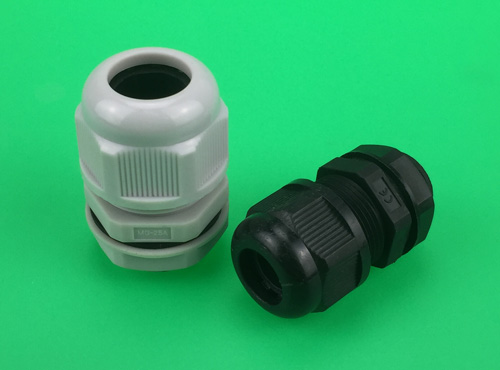

Name:	plastic cable gland MG series
Material:	Nylon PA6
Seal:	NBR
Protection Grade:	IP68(with sealing）
Environment Temperature:	from -40℃ to 100℃(120℃ for short term)
Product Color:	Grey RAL7035;Black RAL9005,other color please inquire.
